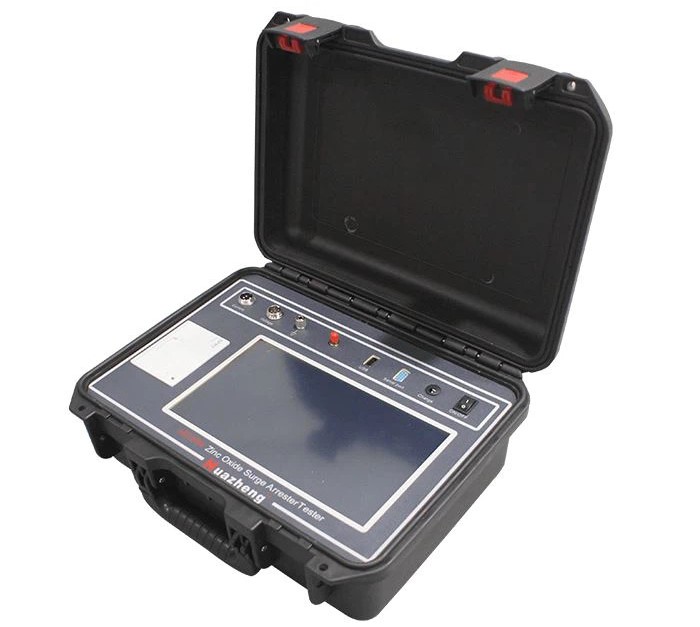

Huazheng HZ-20A Zinc Oxide Surge Arrester Tester (0-20mA)
ManufacturerHuazheng (View more products from this manufacturer)
ModelHZ-20A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Full current: 0-20mA ±(×5%+5uA)
Resistive current: 0-20mA ±(×5%+5uA)
Capacitive current : 0-20mA ±(×5%+5uA)
Current harmonics: 0-20mA ±(×10%+10uA)
Reference voltage: Max100V RMS ±(×5%+0.5V)
Voltage harmonics: Max100V RMS ±(10%)
Working temperature: -10 °C ~ 40 °C
The environmental humidity : ≤ 85% no condensation
Storage temperature: -20 °C ~ 50 °C
Overall dimensions: 320×260×135(mm)
The instrument weight: 5kg (does not include the test line and cable box)
