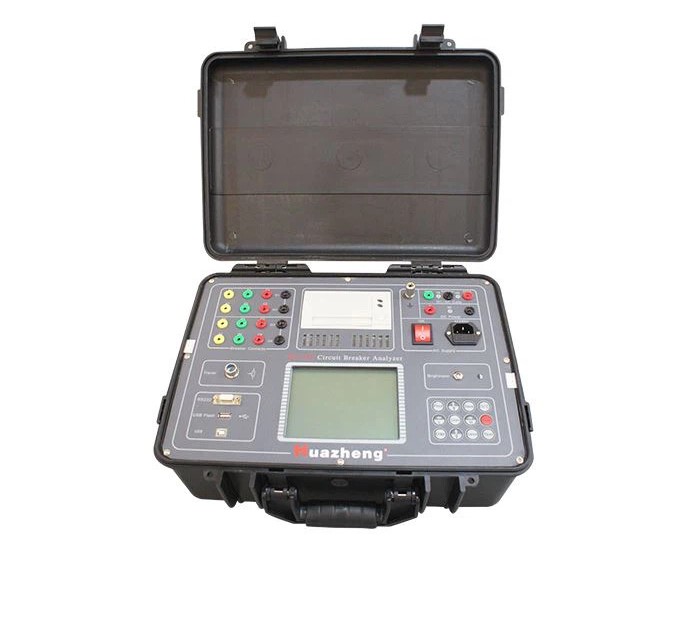

Huazheng HZ-2009 Circuit Breaker Analyzer

Test channels: 12 channels with 25V，the current is 50mA

Transducer: one analog transducer

Time:

Recording time length: 0～20.0s

Time accuracy: ±0.l% reading ± 2 LSB

Resolution: 0.1ms

Motion:

Range: 0～1000mm

Accuracy: ±1% reading ±1LSB

Resolution: 0.1mm

Velocity:

Ranges: 0.01～20.00m/s

Accuracy:±1%reading ±1LSB

Resolution: 0.01m/s

DC power:

Ranges: 5～260V

Max current: 20A

Accuracy: ±1%reading ±1LSB

Load change:≤1%

Trigger:

Voltage: 5～260V

Current: 0.1-20A

Transducer: the transducer states changes

Channels: channels states changed

Dimensions: 415mm×320mm×168mm

Weight: 8kg

Operation temperature: -10℃～50℃

Humidity: ≤80% RH

Power supply: Voltage:AC 220V±10%

Frequence:50Hz±10%

Safety:

Insulation resistance: ＞2MΩ

Leakage current: ＜3.5mA

Immunity: AC 1500V 50Hz，1min.
