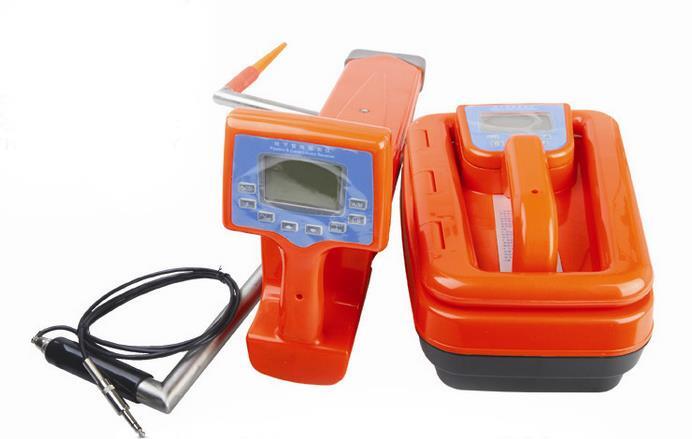

Huazheng HZ-1360 Pipeline & Cable Locator

Technical specification of Transmitter

Signal frequency:

Injection method: 480Hz、7.7KHz、31KHz 、61KHz

Induction method: 31KHz、61KHz

Clamping method: 31KHz

Fault Finding

Output Voltage: 0-400Vp-p adjust according to the insulation condition

Output wave: shape sine wave

Power source: 11.1VDC 4.4AH Li-battery

Maximum output power: 10W

Technical specification of Receiver

Power loss: <1W

Power source: 11.1VDC 1.8AH Li-battery

Max. burying depth for detecting 4.5 meters (normal condition)

Tolerance of burying depth for detecting ±0.05H ±5cm (“H” is pipeline burying depth)

Tolerance of route for detecting: ≤ 5cm

The effective length under detecting pipeline route and depth with Injection method: ≥10Km(normal condition)

The effective length under detecting pipeline route and depth with Induction method: ≥3Km(normal condition)

The effective length under detecting pipeline route and depth with Clamping method: ≥6Km(normal condition)

Insulated fault detecting: ≥2 MΩ

Remark: Normal condition means that without insulation fault and other interference in the measuring range as detecting the pipeline.
