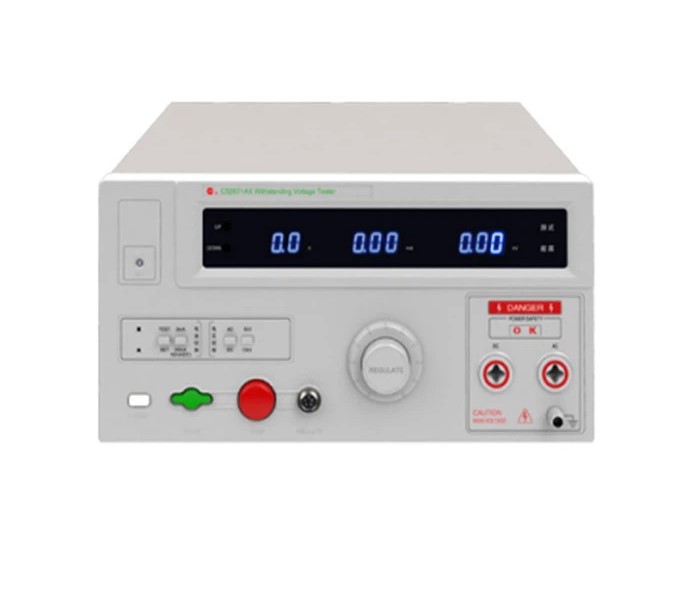

Huazheng CS2673X Withstand Voltage Hipot Tester (5kVAC)

ACW:

Output voltage:（0.00~5.00）kV

Max. output power: 1000VA

Max. current: 200mA

Current range: 2mA、20mA、200mA

Output waveform: sine wave

Waveform distortion: ≤5%

Test time: 0.0s～999s 0.0=continue

DCW:

Ripple factor: ≤5%

Test time: 0.0s～999s 0= continue

Volt meter

Range: （0.00~5.00）kV

Accuracy: ±（5%+5 words ）

Resolution: 10V

Displayed value: RMS

Ammeter:

Measure range:

AC: 0.100mA ～ 200.00mA

Resolution: 2mA：1uA， 20mA：10uA, 200mA：0.1mA

Accuracy: ±（5%+5 words）

Timer:

Range: 0.0s～999s

Min. resolution: 0.1s

Accuracy: ±（1%+50ms）

PLC interface: no

Remote interface: yes
