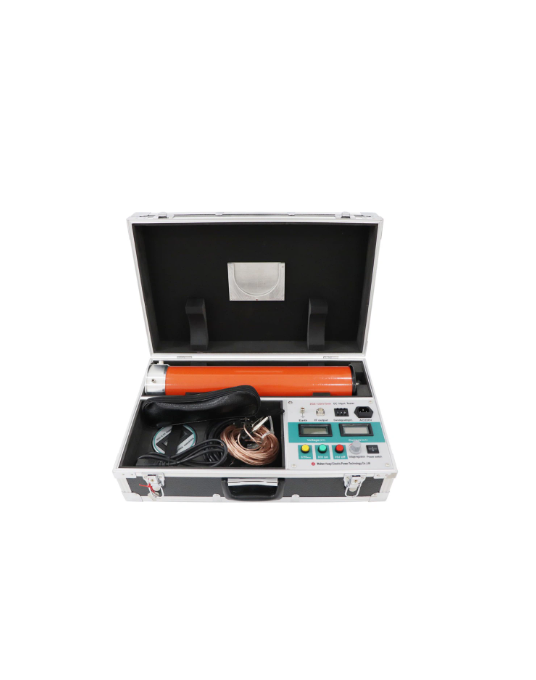

Huayi Electric 120/5 DC Hipot Generator Tester (120kV, 5mA, 600W)

Rated(kV): 120

Rated(mA): 5

Rated power(W): 600

Weight(kg): 10

Volume(mm3): 565*390*190

Voltage cylinder height(mm): 535

Accuracy of output voltage: ±(1.0%R±2D)

Accuracy of output current: ±(1.0%R±2D)

Ripple factor: ≤0.5%

Working mode: Intermittent use, 30 minutes under-rated load

Over-load capacity

The no-load voltage can exceed the rated voltage of 10% for 10 minutes

The maximum charge current is 1.25 times the rated current

Power: AC220V±10% 50HZ

Service conditions

Temperature： -10-40℃

Relative humidity: less than 85% under 25℃, without moisture

Altitude：1500M under
