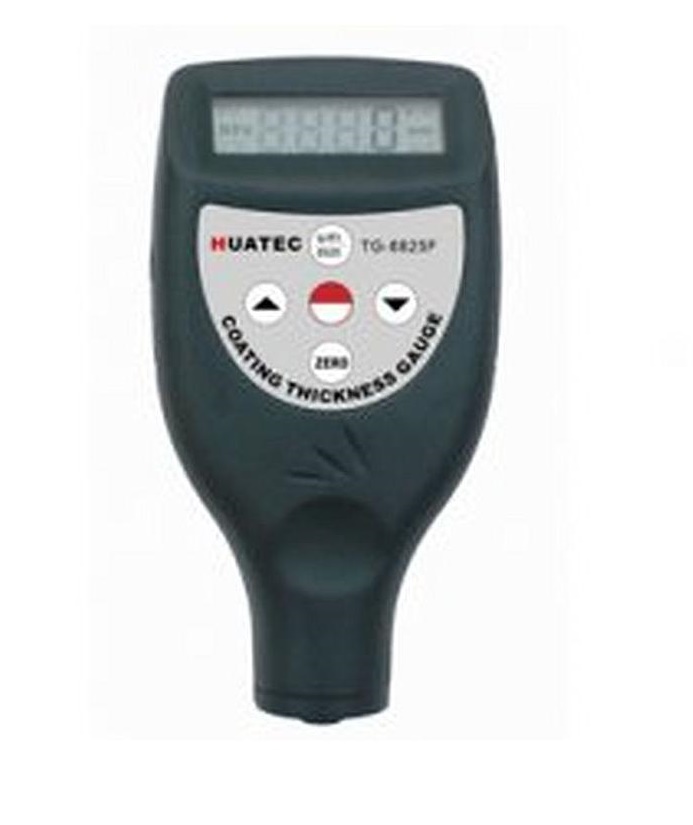

HUATEC TG8825FN Coating Thickness Gauge (ferrous and non ferrous)

Aplication:

Model F: can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)

Mode N: can measure the thickness of non-conductive coating layers (enamel, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Measuring principle: magnetic induction & eddy current

Measurement range:0-1250um in built probe (integrated probe)
Resolution:0.1 um (under 100um) 1um (over 100um)
Accuracy: ±1-3%n or ±3um
Measurement mode: single
Data output: RS232C interface (optional)
Power supply: 4x1.5V AAA(UM-4)battery
2 Shutdown models: manual / automatic
Dimension: 131x65x28mm

Standard Delivery : Main unit(1250um), F type probe, N type probe, F calibration base set, N calibration base set, Calibration foil set, Carrying Case, Instruction manual
