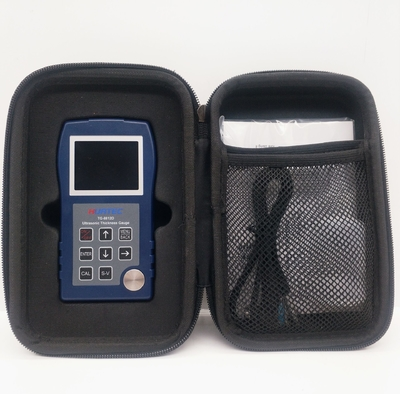

HUATEC TG-8812C Ultrasonic Thickness Gauge (0.75 〜400mm)

Measuring Range (Standard): 0.75 〜400mm

Standard mode: 0.75〜400mm Probe: 5PΦ10mm

Ultra-thin mode: -

Penetration mode (Echo-Echo): -

Microcrystal probe: 0.75〜100mm Probe: 7.5PΦ6mm

High temperature probe: 1.5〜100mm (Probe:ZW5P)

Display Resolution: 0.01mm

Measurement Resolution: ±(1%H+0.1)mm

Material Velocity: 1000～9999m/s

Bandwidth: 1MHz～10MHz(-3dB)

Power Supply: 4.5VDC (three AAA batteries)

Screen: TFT Color screen 2.3 inch

Size: 130(L)×70(W)×25(H)mm

Weight: 125g (excluding batteries)

Work Temperature: -10～﹢50℃(with high temperature probe, up to 300℃)

Work Humidity: 20%～90%RH
