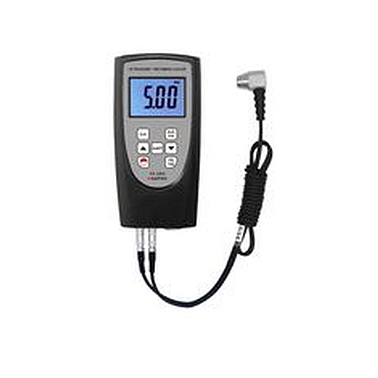

HUATEC TG-3500 400mm Bluetooth Ultrasonic Wall Thickness Gauge 4 Digit 10 mm LCD

Display

4 Digit, 10 mm LCD

Operating Principle

Ultrasonic

Measuring Range (metric / Imperial)

0.75~400mm (45# steel) (Depend on Probe)

Battery Indication

Low Battery Indication

Sound Velocity

1000~9999 m/s

Lower Limit Steel Pipes

Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer

Calibration Block

Included

Resolution

0.1mm / 0.01mm / 0.001inch

Accuracy

± (0.5%n + 0.1)

Power off

Auto Power off & Manual Power Off

Operating Conditions

Temperature: 0~40 °C, Humidity: < 85 %RH

Power Supply

4 x 1.5 V AAA (UM-4) Battery

Dimensions

140 x 72 x 34 mm

Weight

185 g (Not Including Batteries)
