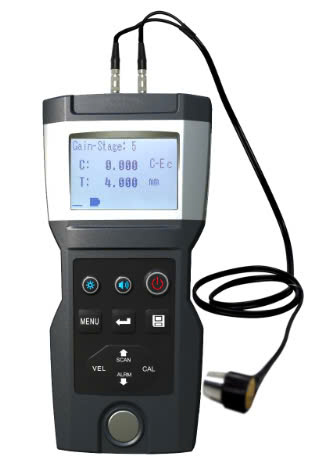

HUATEC TG-3250 Ultrasonic Thickness Gauge (0.75~400 mm; 1 ~ 19999 m/s)

Measure Range: 0.75~400 mm （Steel）

Resolution: 0.001mm/0.0001inches

Measuring Period: 4 times per second

Calibration Mode: Probe Calibration & Two Point Calibration

Measurement Mode: P-E, I-E, E-E

Measuring Mode: Single point, scan, min/max capture, differential, alarm

Display: English / Chinese selectable, FSTN LCD Display with backlight

Communication: Bluetooth & Mini-USB interface, virtual serial port protocol

Power Supply: 3.7V Li-Ion chargeable battery

Usage Temperature: -10 ~ 50 °C

Size: 157mm*78mm*37mm

Shell Material: ABS & PC alloy

Sound Velocity Range: 1 ~ 19999 m/s

Accuracy: 0.03mm or 0.3%*H

Probe Frequency: 2MHz，3MHz，5MHz，7.5MHz

Calibration block: 4.000mm（Steel）

Gain Adjustable: 16 Stages

Data Storage: 1000 measurements, including thickness, sound velocity, time, etc.

Display Content: Thickness, Sound velocity, Stability,Battery, Measuring Mode, etc.

Print: Optional portable Bluetooth thermal printers

Power off: Timeout power off, low battery power off

Storage Temperature: -30 ~ 60 °C

Weight: About 260g

Box Material: ABS (IK08/IP67)
