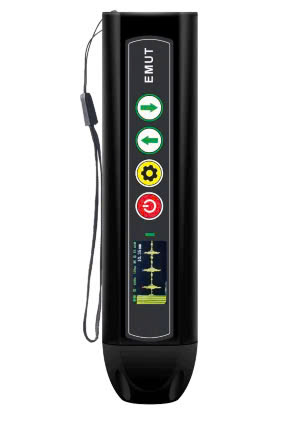

HUATEC TG-17 Electromagnetic Ultrasonic Thickness Gauge (0.25-1000.0mm; ±0.01mm; 400～9999m/s)

Measuring range: 0.25-1000.0mm

Maximum lift-off clearance: 7mm

Detectable workpiece materials: Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum, titanium and other conductor materials

Measuring accuracy: ±0.01mm

Receive gain: 0～96dB，manual or automatic，Manual step pace 1d、automatic step pace 0.1dB

Gate mode Support switching between single and double gates

Sampling rate: 100MSPS

Measuring speed: 1～30 times/second

Sound velocity: 400～9999m/s

Average grade: 1～8 adjustable

Emission frequency: 100Hz-2000Hz adjustable，100Hz step pace

Maximum tilt angle of the probe: ±25°

The minimum diameter(curvature) of detectable workpieces: 9mm

Probe excitation method: Permanent magnet

Sound wave type: Shear wave

Waveform display: Positive half wave, negative half wave, full wave, RF wave

High temperature compensation: Equipped with high-temperature sound velocity automatic compensation function

Power supply: Built in 3.7V 3400mAh lithium battery, with a working time of no less than 5 hours

Normal operating temperature range of the host: -10~+50℃

Host storage temperature range: 0-+40℃

Host weight: 358g(Equipped with room temperature probe)

Host size: Length 178mm× Width 42mm× Thickness 32mm
