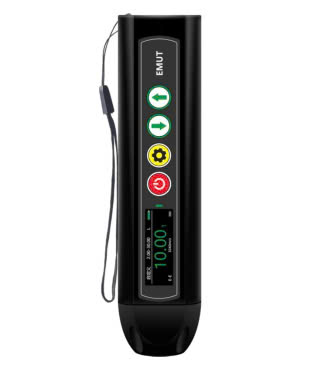

HUATEC TG-15 Electromagnetic Ultrasonic Thickness Gauge (±0.001mm; 400～9999 m/s)

Sampling rate: 100MSPS

Bandwidth: 2.5MHz～6MHz

Launch: ± 600V_400Hz_125ns

Gain: Automatic 0～96dB，pace 1dB

Measurement accuracy: ±0.001mm

Sound velocity range: 400～9999 m/s

Effective range: 0.25～30 mm

Average level: L、M、H three-level adjustable

Lifting distance: 4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel)

Measurement type: Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials

Measurement range:

1X：0.25mm～0.50mm 2X：0.50mm～0.75mm 3X：0.75mm～1.00mm

4X：1.0mm～2.0mm 5X：2.0mm～30mm

Search mode: Frontier-Frontier mode, Wave crest-Wave crest mode, Wave crest-Frontier mode

Measurement mode: Single echo(I-E), Dual echo(E-E), Multiple echo(ME_E)

Auxiliary functions: Auto freeze, Auto gain, Auto sleep, Backlight adjustment

Revised function: Sound velocity calibration, zero calibration

Communication Interface: RS-485 or USB2.0

Charger: 5V2A, Standard Type-C interface

Display screen: 1.47 inch 320×172 IPS_LCD

Dimension: 178.4mm×42mm×32mm

Battery life: 3.7V 3400mAh Lithium battery, 6 hours of battery life

Bare weight:

A Metal shell: 358g B Injection molded shell: 255g

C Injection molded + quick release: 289g
