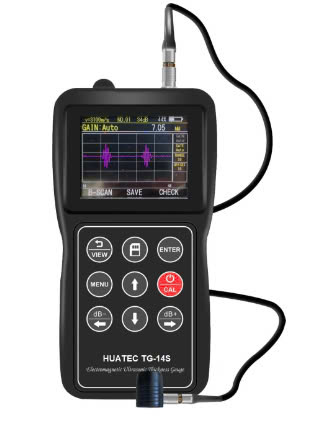

HUATEC TG-14S Ultrasonic Thickness Gauge (1.0 ~ 240mm; 1000 ~ 9999m/s)

Measuring range: 1.0~240mm

Lifting distance: 0~3mm

Operating frequency: 3MHZ

Ambient temperature: -20 ° C to +50 ° C

High temperature sound speed compensation: automatic compensation

Temperature range: -150℃~800℃(higher temperature can be customized)

Probe type: standard room temperature probe, optional high temperature high frequency probe, high temperature low frequency probe, B scanning probe.

Resolution: 0.01mm

Adjustable range of sound speed: 1000~9999m/s

Continuous working time: 3h

Size and weight: 151*76*35mm 220g

Excitation mode: permanent magnet

Error range: ≤10mm: error ±0.05mm, > 10 mm: + / - 0.01 + H / 200 mm

(H is the thickness of the workpiece)

Power supply: 2*3.7V lithium battery/bus power supply is optional

Communication interface: RS485
