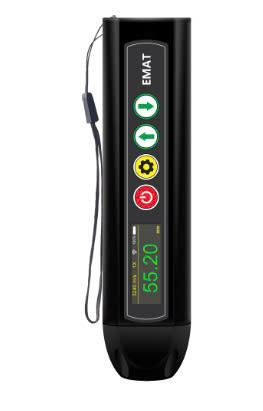

HUATEC TG-14 Ultrasonic Thickness Gauge (1.5-240.0mm; 1000-9999 m/s)

Detectable workpiece material: carbon steel, cast steel, alloy steel, stainless steel,copper, aluminum, titanium and other conductor materials

Measurement range: 1.5-240.0mm,the maximum value of the measurement range is affected by the properties of the measured material, sound attenuation coefficient, surface conditions and other factors

Error range of measuring equipment: When the thickness of workpiece is less than 10mm, the error is 0.05mm; when the thickness is more than 10mm, the error is + (0.01 + H / 200) mm (H is the thickness of workpiece)

Receiving gain: ≤ 100dB

Working temperature range of high temperature probe: low carbon steel (or other ferromagnetic steel): - 150 ℃~+800 ℃; Austenitic stainless steel (or other non ferromagnetic materials): - 150 ℃~+150 ℃

Normal temperature probe: ≤ 80 ℃, 4MHz, mainly used to detect fine-grained materials, such as low carbon steel, aluminum, etc.,

High temperature probe: ≤ 800 ℃, 4MHz, mainly used to measure ferromagnetic fine-grained materials, such as low carbon steel

Maximum lifting distance: 4mm (the actual lifting distance is related to the material property and temperature). Anti rust film, salt deposit or any other insulating coating (paint, varnish, enamel, plastic, etc.) can be used as the operating gap

The minimum diameter (curvature) of the workpiece: 9mm

The maximum tilt angle of the probe: 25°

Excitation mode of probe: permanent magnet

Type of sound wave: shear wave

High temperature compensation: it has the function of automatic compensation for high temperature sound velocity

Sonic sound speed adjustment range: 1000-9999 m/s

Waveform display: positive half wave, negative half wave, full wave, RF wave, envelope wave

Power supply: built in lithium battery, working time not less than 5 hours

The normal working temperature range of the host: -10~+50℃

Host storage temperature range: 0~+40℃

Host weight: 250g (with normal temperature probe)

Dimensions of the host: length 176mm x width 42mm x thickness 32mm
