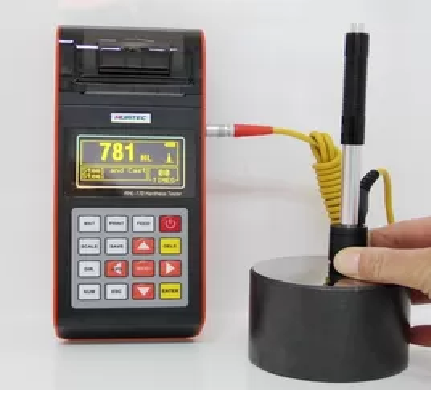

HUATEC RHL-170 Energy Saving Hardness Testing Machine 360° (HL, HB, HRB, HRC, HRA, HV, HS)

Measuring range:HLD (170-960),HRC (17.9-69.5),HB (19-683),HV (80-1042),HS (30.6-102.6),HRA(59.1-88),HRB (13.5-101.7)

Measuring direction:360°

Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

Display:dot matrix LCD,128×64 dots

Data memory: 600 groups max.(relative to impact times 32~1)

Printing paper: width is (57.5±0.5)mm, diameter is 30mm

Battery pack: 6V NI-MH

Battery charger: 9V/500mA.

Continuous working period:about 200hours(With backlight off, no printing)

Communication interface:USB2.0

Dimensions: 210 x 85 x 45mm (host).

Weight: about 0.6kg (host).

Standard Configuration:

- Main Unit RHL-170:1

- D type impact device:1 (With cable)

- Standard test block:1

- Cleaning brush (I):1

- Small support ring:1

- Battery Charger:1 (9V 500mA)

- Paper for printing:1

- Manual:1

- Data Pro software:1

- Communication cable:1

- Instrument case:1

Optional Configuration:

- Cleaning brush (II):1 (For use with G type impact device)

- Other type of impact devices and support rings
