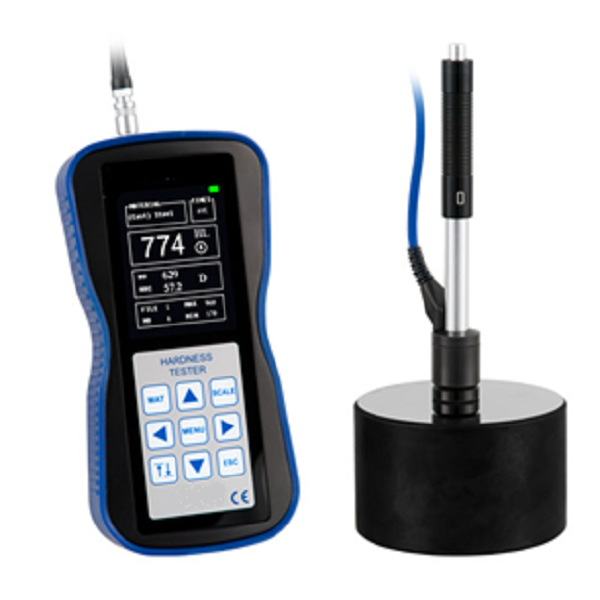

HUATEC RHL-100 Large Measuring Range Material Hardness Tester (170 ... 960 HLD)

Measuring range: 170 ... 960 HLD

Reproducibility:± 6 HLD

Impactor:Type D

Measuring direction:360°

Adjustable scales: Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore

Surface quality Ra of the workpiece: 2 µm

Minimum weight of the workpiece:

- Direct measurement: 5 kg / 11 lbs

- Tied measurement: 2 ... 5 kg / 4.4 ... 11 lbs

- With coupling gel: 0.05 ... 2 kg / 0.1 ... 4.4 lbs

Minimum thickness of the workpiece

- Direct measurement: > 5mm / > 0.19 in

- With coupling gel: 0.8 ... 5 mm / 0.03 ... 0.19 in

Display: Color LCD

Internal measured value memory: 600 records in 6 files

Interface: USB, WiFi

Power supply: 2 x 1.5V AA batteries

Operating time: ca. 50 hours

Operating conditions: 10 ... 50°C / 50 ... 122°F max. 90% r.H.

Storage conditions: -30 ... 60°C / -22 ... 140°F max. 90% r.H.

Dimensions: 160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in

Weight: 350 g / < 1 lb

Standard Delivery:

1 x Durometer RHL-100

1 x Impactor D

1 x Test block

2 x 1.5V AA batteries

1 x User manual

1 x Carry case

Datasheet
