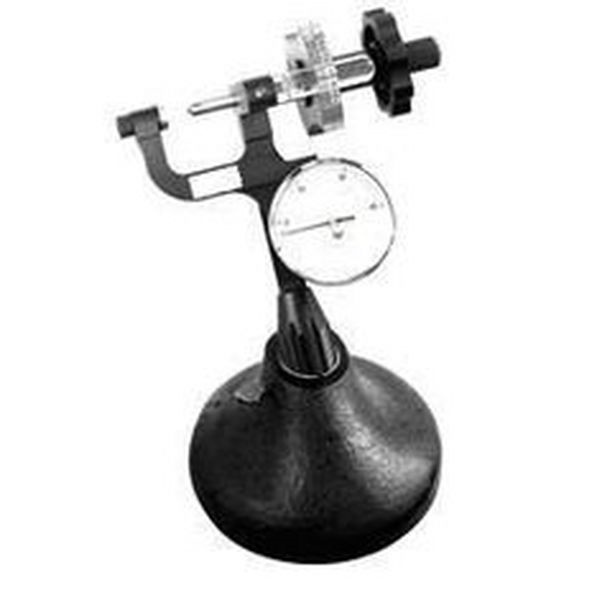

PH-1S Huatec Portable and Acurate Superficial Rockwell Hardness Tester , Multifunction Portable Hardness Tester

Main Technical Parameters

Initial Test Force: 3kg

Total Test Force: 15kg, 30kg, 45kg

Force Applying Method: By screw

Indenter: 120°diamond cone

Ф1.588mm carbide ball

Accuracy: Meets the requirements of ISO6508

Resolution: 0.5HR

Testing Range: HRN, HRT,HRW, HRX, HRY, etc. 15 scales.

Application: All metals including iron, steel copper, aluminium, zinc, lead, tin, carburized steel, nitrided steel etc.

Standard Package

Tester

Bench stand

120°diamond cone indenter

Ф1.588mm carbide ball indenter

3 superficial Rockwell test blocks

V anvil (small)

Extension (small)

Base for standard test block (magnetic)

Carrying case

Optional Accessories

120°diamond cone indenter

Ф1.588mm, Ф3.175mm carbide ball indenter

Ф1.588mm, Ф6.35mm, Ф12.7mm steel ball indenter

Standard test blocks (HR15N, HR30N,HR45N, HR15T, HR30T, HR45T)

Raised spot anvil

Slim raised spot anvil (flat top: Ф1.5mm, Ф2.5mm, Ф3.5mm)

Diamond raised spot anvil

Ball testing anvil

Spare magnifier
