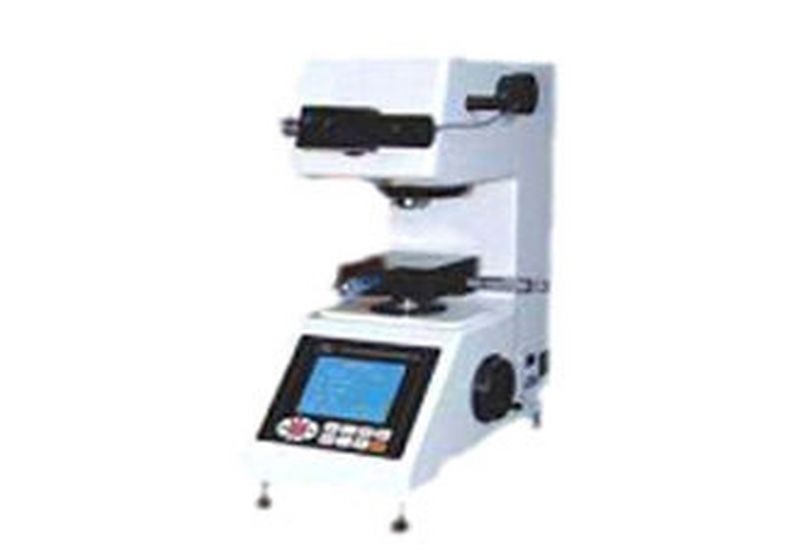

Huatec MHV2000 Glass / Ceramics Micro Hardness Tester Digital 1HV - 2967HV 110V / 220V

Specifications:

- Test Forces:(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80 upto 19.60) N (10, 25, 50, 100, 200, 300, 500, 1000 upto 2000) gf

- Carriage Control: automatic ( loading / holding-up of the load / unloading )

- Amplification of the Microscope: 200 ×, 400 ×

- Dwell Time of the Test Force: (5-60)s

- Min. Graduation Value of the Testing Drum Wheel: 0.0625um

- Testing Field: 1HV—2967HV

- Dimension of the XY Table: 100 × 100 mm

- Movement Field of the XY Table: 25 × 25mm

- Max. height of the specimen : 70 mm

- Max. width of the specimen : 95mm

- Output : installed with a printer and a RS232 serial interface

- Light source : cold light source

- Power Supply : 110V/220V, 60/50Hz

- Dimension: (425 × 245 × 490)mm

- Weight: 30Kg

Main accessories of digital micro hardness tester MHV2000:

- XY-stage test table 1

- Thin specimen test table 1

- Fork-shaped test table 1

- Fine wire test table 1

- Adjustable screw 1

- 10×Digital Micro Lens 1

- Micro Vickers hardness blocks (high medium) 2

- Gradienter 1

- Key words:micro hardness tester, microhardness tester, micro vickers hardness tester, metal hardness tester, hardness tester
