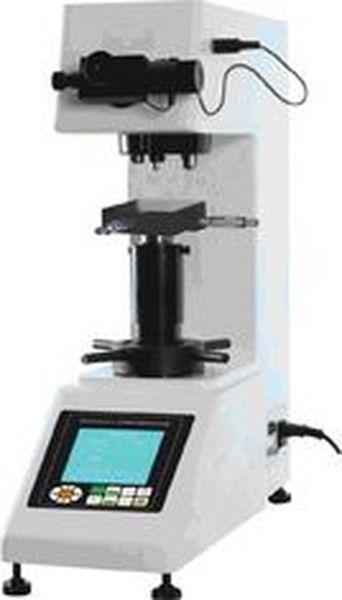

Specifications:
- Test forces: 2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03N
(0.3, 0.5, 1, 2, 2.5, 3, 5 kgf)
- Test force application method: automatic loading, dwelling and unloading
- The shifting method between indenter and objectives: auto shift
- With built-in printer
- Total Amplification of the measuring Microscope:
+ Micro Eyepiece:10×
+ Objectives: 20×,40×
+ Total Amplification: 200×,400×
- Total Amplification/ Min. Test Unit: 100×/0.25 μm, 200×/ 0.125 μm, 400×/ 0.0625 μm
- Dwell time of the test force: 0~60s (5 second as a unit)
- Max height of the specimen: 170 mm
- Distance between the center point of the indenter and the exterior panel: 130mm
- Weight of the main body: 50kg or so
- Power source: (110~220) AV, (50~60) Hz
- Overall dimension (L×W×H): (530×210×630) mm
