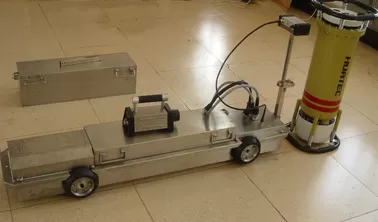

HUATEC HXPC-100D X-ray Crawler Machine (Φ219-Φ510mm, 1770mm, 150KV, 3mA)
ManufacturerHUATEC(View more products from this manufacturer)
ModelHXPC-100D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specification
Pipe diameter detecting range: Φ219—Φ510mm
Total weight: 70KG
Crawler length: 1770mm
Size for generator: Φ200×570
Creeping speed: >15M/min
Creeping distance: >5Km
Locating error: ±5mm
Max.output voltage: 150Kv
Max.outout current: 3mA
Climbing ability: 22°
Radiation angle: 360°*40°
Focus spot: 1.0×2.0mm
Batteryenergy: 22Ah/120V
Motor power: 150W
Exposure time: 1s~9h continues adjustable
Delay time before exposure: 24s
Humidity: 90%
Max.Penetrate thickness: 12mm
Operation temperature: -30°~ 70°
