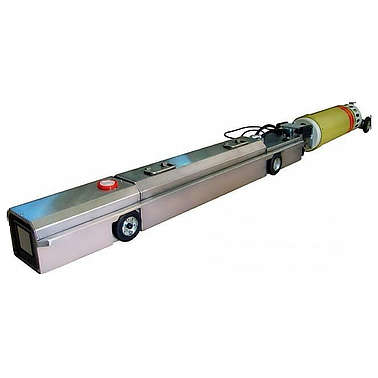

Huatec HXPC-100C X RAY PIPELINE CRAWLER (Φ273~Φ700mm, 1KW)

- Pipe diameter detecting range: Φ273—Φ700mm
- Total weight: 100KG
- Crawler length: 2000mm
- Creeping speed:15M/min
- Creeping distance:2KM
- Locating error: ±5mm
- Max.output voltage:200Kv
- Max.outout current: 3mA
- Climbing ability: 25°
- Radiation angle: 40°
- Output power:1 KW
- Batteryenergy: 22Ah/120V
- Motor power:200W
- Exposure time: 1s~1hcontinues adjustable
- Exposure voltage:5 selection
- Operation temperature: -30°~ 70°

The crawler include below parts as standard accessories:
- Lead acid pile: 110V(22Ah)
- X-ray machine: 250KV/5mA
- Remote controller (Electro magnetic induction type, no source)
