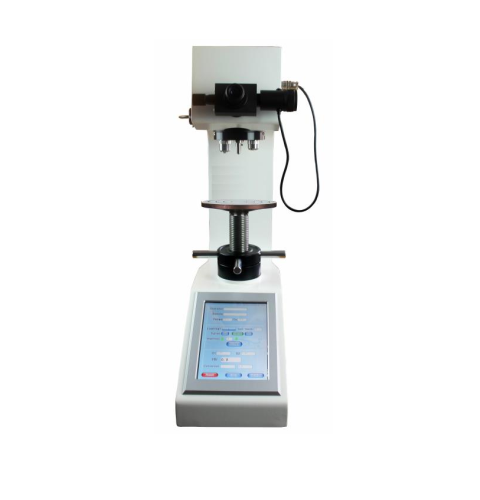

HUATEC HV-50MDX Advanced Vickers Hardness Tester (0.125µm, 50.0Kgf(490N))

Min measuring unit: 0.125µm(option:0.0625µm)

Load: 1.0 (9.8N)、2.0Kgf(19.6N)、3.0Kgf(29.4N)、5.0Kgf(49.0N)、10.0Kgf(98.0N)、20.0Kgf(196N)、30.0Kgf(294N)、50.0Kgf(490N)

Hardness measuring range: 8~2900HV

method of Load applied: Automatic loading, unloading

Objective, indenter exchange: Manual/Automatic

Objective:

Number: two

Standard： 10X、20X

Test microscope magnification: Standard：100X、200X

Dwell time: 0~99S（per second as a unit，any entering）

Data output: Read by LCD，saved in USB flash disk as EXCEL document

Max Height of Specimen: 180MM

Distance of Indenter to outer wall: 160mm

Power supply: AC220V+5%，50-60Hz

Overall Dimension: 580*240*660mm

Net weight: About 40Kg
