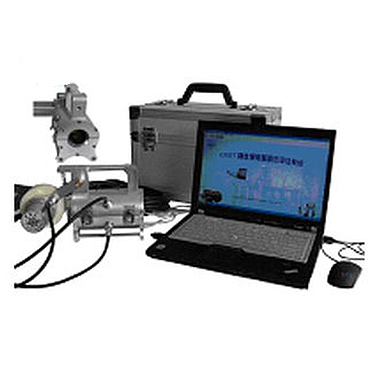

HUATEC HRD-100 Ultrasonic rope detector

Specification
- For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8")
- Size 330 x 235 x 190 mm (13" x 9, 3" x 7, 5 ")
- Weight 15 kg (33 lbs)
- Speed along the rope during inspection - from 0 to 6 m/s (0 to 6, 54 yards/s)
Features
- Dual-function: LMA and LF capability
- Speed does not affect readings
- Accurate distance wheel assembly
- Easy to install and re-install
- Easy to handle and fix on the rope
- 3 changeable hall sensor units
- Temperature range -10 +50°C
- PC software control directly, continuously testing rope length more than 10000m
- Power: AC 220V±10%
- Working temperature: -20℃~40℃
- Storage temperature: -40℃~60℃
- Relative humidity:≤90%RH
- Typical applications but not limited with:
- Inspection of mining ropes, aerial ropeways (mostly ropes of chairlifts and gondola lifts), guy (suspension) ropes of bridges.
Standard accessories
- Probe　　 　1 set　　 　
- Real time alarm 　　　 　1pc
- Signal cable 1pc　　 　
- HRD PC analyse software 　1set
- laptop 　　　　 1pc 　 　
- Communication cable 　1pc
- Charger　　　　　　 1pc
- Tool 1set
- Instruction manual 1set　　
