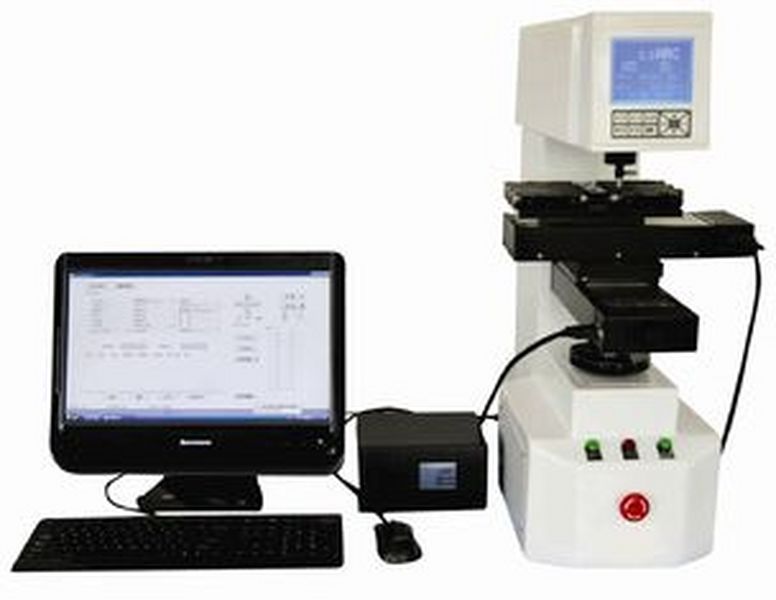

Huatec HRA3000 AZFM Full Automatic, LCD Screen Display Rockwell Hardness Tester (HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK.)

Specifications:

- Measurable HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK.

- Conversion Scale: Superficial Rockwell, Brinell, Vickers

- Indication of Hardness Value: Large LCD screen display

- Max Height of Specimen: 175mm, Heighten: 400mm

- Data output: Inside Printer, RS-232

- Net weight: About 65Kg

- Power supply: AC220V

- Overall Dimension (mm): 520*240*720

- Duration time: 2-60s

- Carried Standard: GB/T230.1 Chinese Standard, GB/T230.2 Chinese Standard,
JJG112 Inspection Rule, ASTM Standard

- Distance of Indenter to outer wall: 160mm

- Speed of Increase the sample: 3mm/s

- Preliminary Testing force: 10kgf(98.07N)

- Testing force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)

- Rockwell Scale: HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK

- Hardness measuring range: HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100
HRG:30-94 HRH:80-100 HRK:40-100

Standard Accessories:

- Diamond Rockwell Indenter: 1 pc

- Diameter 1.5875mm Ball Indenter: 1pc

- Hardness block (HRC High Low 2, HRB 1): 1pcs

- Large, Medium, “V” shaped Testing Table: Each 1

- Hardness block (HRC High Low 2, HRB 1): 3 pcs

- Large, Medium, “V” shaped Testing Table: Each 1

- Weights(A,B,C): Each 1

- Plastic Dustproof cover: 1 pc

- Manual

- Product certificate
