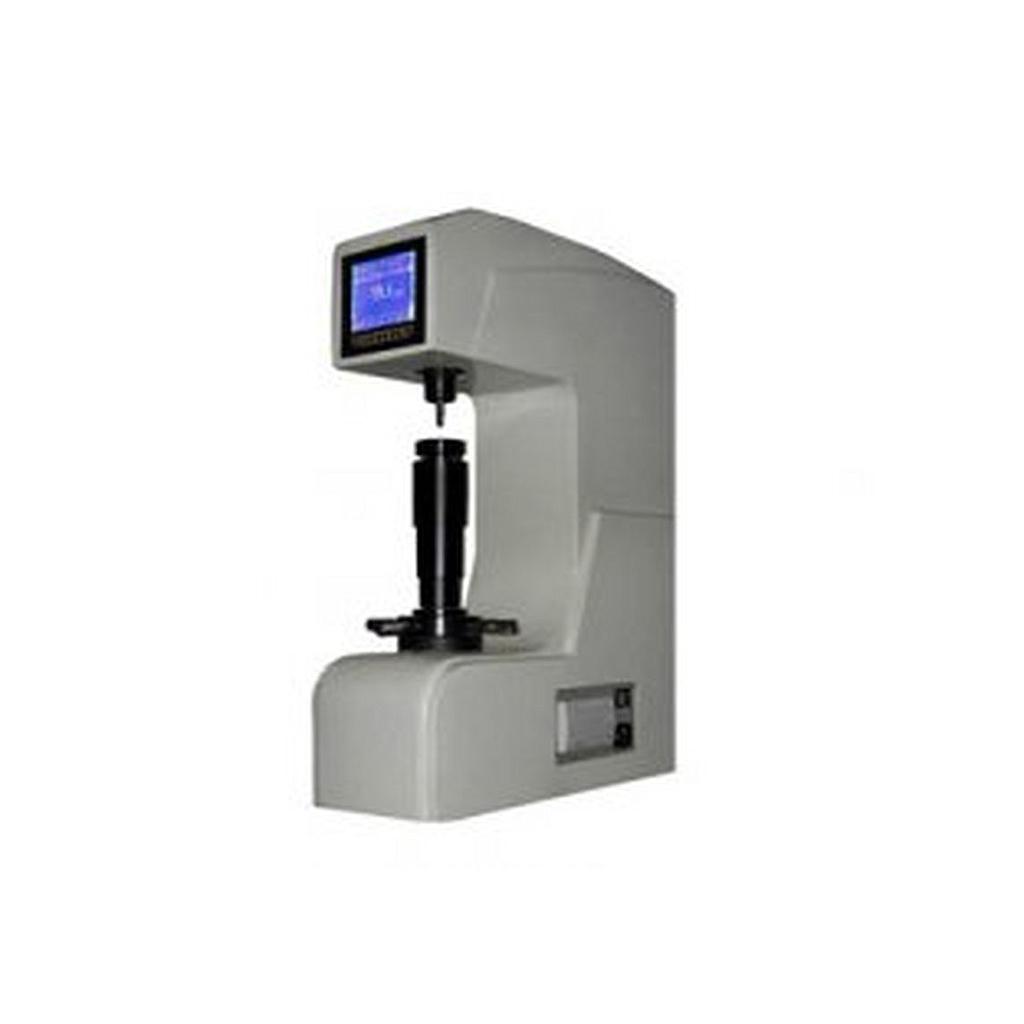

HUATEC HR150S Automatic Rockwell Hardness Tester for Plastic

Detailed Product Description

• HR150S can be used directly to measure Rockwell hardness for plastic material.
• Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
• Automatic test force switch according the selected scale without manual operation.
• Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
• Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.
• The recovery time can be setted according to deformation of different plastic materials from 1-50 sec.
• The tester meets all the following standard such as ISO 2039, and ASTM D785.
• Technical data:
• · Preload:98.1N (10kgf)
• · Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
• · Scales:HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
• HRF, HRG, HRH, HRA, HRB, HRC, HRD
• · Load dwell duration:2s～99s, can be set and stored
• · Recovery time:1s～50s, can be set and stored
• · Resolution :0.1HR
• · Display:High definition backlight LCD
• · Operation:Menu selectable, Membrane keypad
• · Upper/lower limits setting & alarming
• · Data statistics:Avg., Max., Min., S, R available
• · Curved surface correcting automatically
• · Memory:Max 500 items of test results stored automatically
• · Data output:USB port toexternalPC
• · Printer:2 options
• 1) with aRS-232portto the externalmicro printer
• 2) with an integrated micro-printer
• · Testing space:200mmin vertical, 165mm in horizontal
• · Dimensions:550mm×200mm×720mm
• · Power supply:AC, 220V/110V, 50～60Hz, 4A
• · Net weight:95kg
