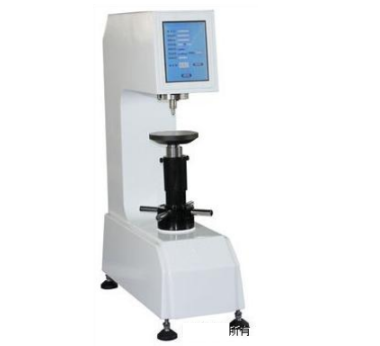

HUATEC HR-150DX-P Rockwell hardness tester with Touch screen (10 kgf (98 N))

Scales Converted to: Rockwell, Brinell, Vickers

Dwell time: 0-60s

Initial load of Rockwell: 10kgf (98N)

Total load of Rockwell: 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N)

Initial load of Superficial Rockwell: 3kgf (29.4N)

Total load of Superficial Rockwell: 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N)

Load value error: <0.5%

Hardness testing range

HRA: 20-96

HRB: 20-100

HRC: 20-70

HRD: 40-77

HRE:70-100

HRF: 60-100

HRG: 30-94

HRH: 80-100

HRK: 40-100

HRL: 50-115

HRM:50-115

HRR: 50-115

Testing rage of Superficial Rockwell HR15N: 70-94; HR30N: 42-86; HR45N: 20-77; HR15T: 67-93; HR30T: 29-82; HR45T: 10-72

Hardness measurement accuracy:0.1HR

Executive standard

GB / T230.1 GB / T230.2

National standard verification procedures JJG 112

ASTM D785

Max Height of Sample:218mm

Distance of Indenter to outer wall:200mm

Hardness reading:LCD display

Data output:USB flash disk

Power supply:AC220V,50/60HZ

Net weight:About 70kg
