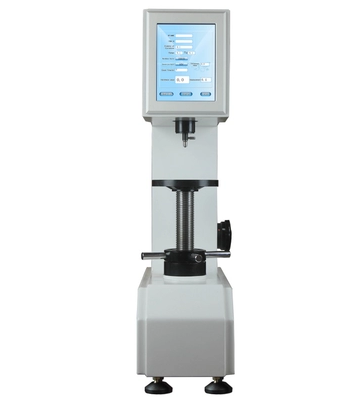

HUATEC HR-150DT-P Rockwell Hardness Tester (10 kgf (98.07 N))

Initial test force: 10kgf(98.07N)

Total test force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)

Rockwell hardness scale: HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV

Measurement range: HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125

Dwell time: 0-99s

Hardness resolution: 0.1HR

Test force accuracy: ＜1.0%

Data output: LCD display

Touch screen: 8 inch

Data storage: Can save 20 different kinds of results, built-in printer and RS-232

Carried standard: GB/T230.2, GB/T3398.2, JB/T7409

Max height of specimen: 200mm

The distance from indenter center to the wall: 200mm

Dimension: 560×200×800mm

Weight: 70kg

Power:AC220+5%,50～60Hz
