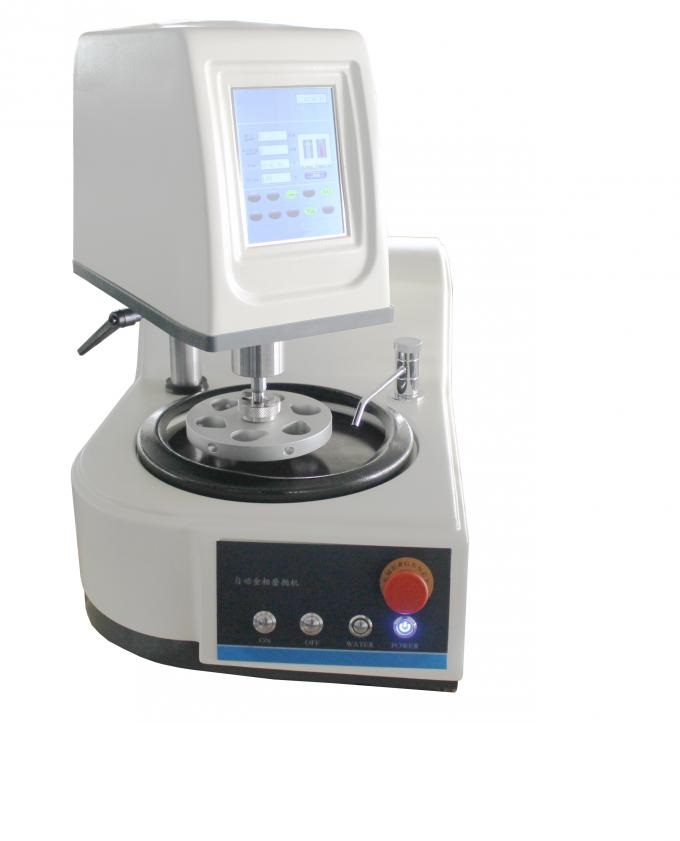

HUATEC HPA-1000X Full-automatic metallographic grinding and polishing machine (central pressure) echnical parameters
ManufacturerHUATEC(View more products from this manufacturer)
ModelHPA-1000X
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Station: Single plate
Working disk diameter: Standard 254mm with magnetic transfer disk system
Working disk speed: 100-1000 RPM steering positive and negative rotation can be switched
Grinding head speed: 0-100r/min
Sample preparation time range: 0-9999s
Loading range: 30-200N
Loading mode: Center load
Sample gripper: Standard 30mm six (optional 40-50mm four, the rest can be customized)
The power supply: AC220V, 50 hz
The motor power: 0.75 Kw
Overall dimension (length * width * height): 760 x 470 x 700
The weight: 90kg
