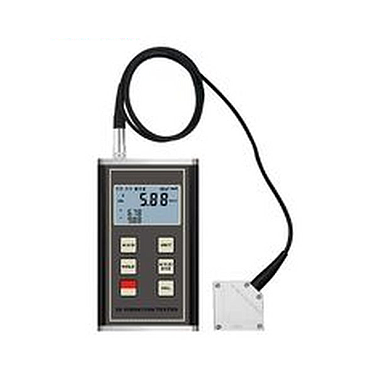

Huatec HG-6363 3D XYZ Digital Portable Vibration Meter

Specifications:

- Vibration Sensor:3-Axis Piezoelectric accelerometer
- Display: 4 digit LCD backlit
- Axial Vibration: any one axis of X ,Y,Z or 3 axes of XYZ
- Measurement Range:
- Velocity : 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
- Acceleration : 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
- Displacement : 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
- Frequency Range for Measuring:10Hz. to 10kHz.
- Accuracy: 5% of reading + 2 digits
- Metric/ Imperial conversion
- Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
- With Max. value hold and low battery indication
- PC interface: RS232C or Bluetooth interface
( Cable and software is not included)
- Power supply: 2x1.5v AA size (UM-3) batteries
- Power off : Manual off at any time or auto power off is enabled by user
- Operating conditions:
+ Temperature : 0-50 ℃
+ Humidity : below 95% RH
- Dimensions: 124x62x30mm/4.9x2.4x1.2 inch
- Weight: 120g (not including batteries)

Standard Delivery:

- Powerful rare earth magnet 1 pc.
- Accelerometer 1 pc.
- Stinger probe (Cone) 1 pc.
- Stinger probe (Ball) 1 pc.
- Carrying case 1 pc.
- Operation manual 1 pc.
- Optional accessories: Headphones for use as electronic stethoscope
- Cable and software for RS232C
