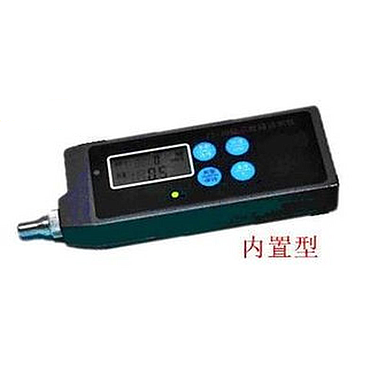

Huatec HG-500 Digital Portable Vibration Calibrator 10HZ - 1KHZ 20 hours

Specifications:

- Parameters:
+ Acc(unit:m/s2):0.1 to 199.9m/s2
+ VEL(unit:mm/s):0.1 to199.9 mm/s
+ DISP(unit:mm): 1 to 2000 µm
+ Env (unit:Hi-m/s2):0.1 to 25 m/s2
+ TEP (unit:oC):-20 oC to 200 oC
+ RPM (unit:rpm/min) 1 to 9999rpm/min
- Error:
+ Acc:10Hz~5000Hz, + 5%;
+ VEL:10Hz~2000Hz, + 5%
+ DISP:10 Hz~1000Hz, + 5%
+ Env;3kHz~10kHz 5Hz~2kHz, + 5%
- Accuracy:±5%±2
- Power:1pc 3.6V lithium battery, currency:10~40mA
- Continuous working time: 20 hours
- Working condition:0-50℃, humidity:<85%
- Size:125 x50 x 20 (mm)
- Weight: 100g battery included
