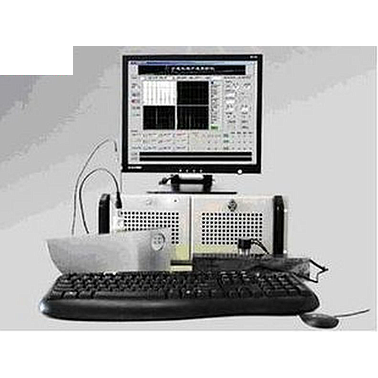

HUATEC HFD-1000 High stability multi-channel ultrasonic flaw detector HFD-1000 with 2 - 16 channels

Frequency: broadband, 5MHZ, 10MHz third gear

repetition frequency: the highest repetition rate of 10kHz

sensitivity margin: The 2.5Pφ20Z probe detected DB-PZ20-2 test block, φ2 flat Kong Lingmin degree margin ≥ 46dB.

Resolution: ≥ 30dB.

Vertical linear error: ≤ 8% (output signal <4V)

Horizontal linear error: ≤ 1%

Dynamic Range: ≥ 30 dB

blind spot: <10mm

attenuator error: 12dB error ≤ 1dB

front door and wave-wave gate width adjustment range: 500us, the amount of 50ns step

Delay display range: 500us, the amount of 50ns step

Power supply: AC220V ± 10%, 50Hz
