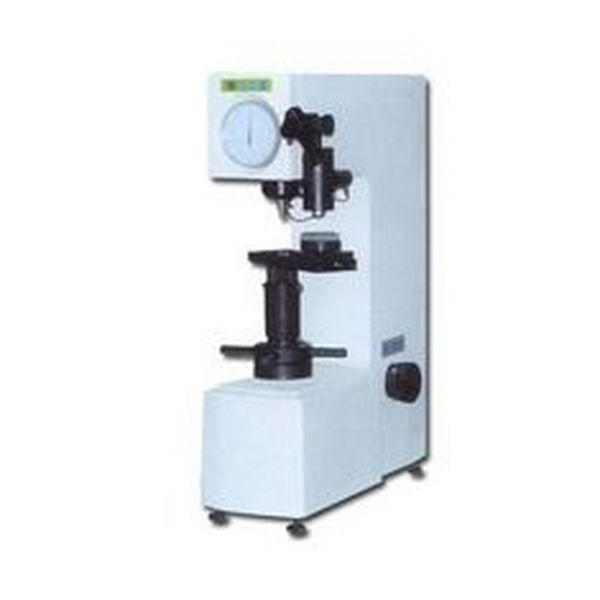

Huatec HBRV-187.5E Electric Brinell, Rockwell & Vickers hardness tester, 7 Multi-function Surface Brinell Hardness Tester

Specifications:

- Brinell Scale: HBW2.5/31.25 HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5

- Testing force: 31.25kgf(306.5N)62.5kgf(612.9N)187.5kgf(1839N)

- Rockwell Scale: HRA HRB HRC HRD HRE HRF HRG HRK HRH

- Testing force: 60kgf(588N) 100kgf(980.7N) 150kgf(1471N)

- Vickers Scale: HV30 HV100

- Testing force: 30kgf(294.2N) 100kgf(980.7N)

- Min measuring unit: Brinell:0.004mm Vickers: 0.002mm

- Max Height of Specimen: Rockwell: 175 Brinell, Vickers: 145mm

- Net weight: 60kg

- Power supply: AC220+5%,50~60Hz

- Overall Dimension (mm): 520*200*700

- Duration time: 2~60s

- Hardness measuring range: Rockwell: 20~100 Vickers: 8~2900 Brinell: 8~650HBW

Standard Accessories:

- Rockwell, Vickers Indenters: 1 pc

- Diameter 1.5875,2.5,5mm Hard alloy ball indenter: 1 pc

- Measurement microscope: 1 pc

- floodlight: 1 pc

- Hardness blocks: 5 pc

- Large, Medium, “V” shaped Testing Table: 1 pc

- Power cable: 1pc

- Slipped Table: 1 pc

- Objective: 1pc

- Manual: 1 pc
