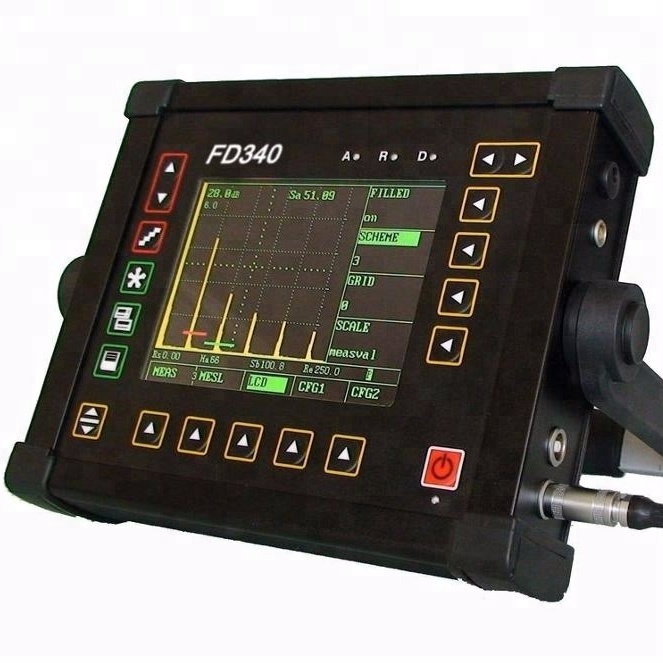

HUATEC FD340 Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display

- Frequency: broadband, 5MHZ, 10MHz third gear

- repetition frequency: the highest repetition rate of 10kHz

- sensitivity margin: The 2.5Pφ20Z probe detected DB-PZ20-2 test block, φ2 flat Kong Lingmin degree margin ≥ 46dB.

- Resolution: ≥ 30dB.

- Vertical linear error: ≤ 8% (output signal <4V)

- Horizontal linear error: ≤ 1%

- Dynamic Range: ≥ 30 dB

- blind spot: <10mm

- attenuator error: 12dB error ≤ 1dB

- front door and wave-wave gate width adjustment range: 500us, the amount of 50ns step

- Delay display range: 500us, the amount of 50ns step

- Power supply: AC220V ± 10%, 50Hz
