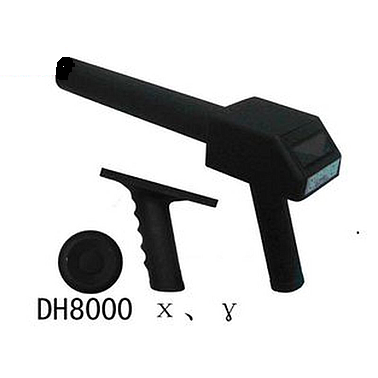

Huatec DH8000 Radiation detector X, γ

Function:

Single-chip, Big LCD display, Backlight

High sensitivity, wide measuring range, good performance of energy response

800 group datas memory of dose rate, eacy to check

Dose rate alarm, detector fault alarm

Dose rate and Cumulate dose can be tested

Lower voltage alarm

Al-Mg die-casting shape, better application countryside

Main specifications

Detector: φ30×25mm,NaI(TL)

Resolution: 1µSv/h≥350CPS

Energy: 35Kev

Measuring range: dose rate:0.01~200.00µSv/h

DH8000A Dose rate :0.01~1500.00µSv/h(Protect class)

Cumulate dose:0.00µSv~9999.99µSv

Energy range: 40Kev~3Mev

Energy response: 40Kev~3Mev≤±30%(according to 137Cs)

Relative basic error: ≤±10%

Measuring time:1,5,10,20,30 seconds

Alarm:0.25,2.5,10,20,60(µSv/h)

Counter time: Dose rate: µSv/h,µGy/h,µR/ adjustable

Cumulate dose: µSv Counter rate: CPS

Power consumption: ≤120mW (without backlight)

Weight:1.80Kg(battery included)
