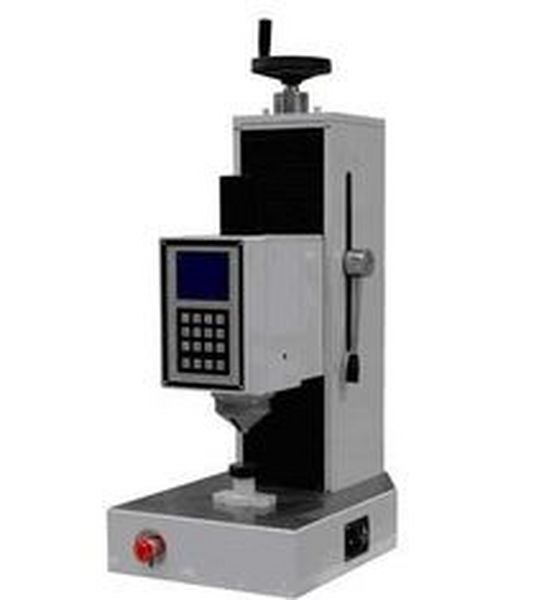

Huatec 300HRSS-150 LCD Display, Test Force Closed-loop Control, Automatic Full Scale Rockwell Hardness Tester (HRA, HRB, HRC, HRN, HRT)

Specifications:

- Measuring range: Rockwell: 20-88HRA, 20-100HRB, 20-70HRC

- Superficial Rockwell: 70-94HR15N, 42-86HR30N, 20-77HR45N 67-93HR15T, 29-82HR30T, 10-72HR45T

- Test force: Rockwell 588.4, 980.7, 1471N (60, 100, 150kgf)

- Superficial Rockwell 147.1, 294.2, 441.3N (15, 30, 45kgf)

- Measuring scale: HRA, HRB, HRC, HRN, HRT (Scales of F, G are optional)

- Unit of display: 0.1HR

- Moving range of measuring head: 50mm

- Output: built-in RS232 interface

- Max. height of test piece: 300mm

- Depth of throat: 150mm

- Dimensions: 1000 x 600 x 450mm

- Power supply: 220V AC or 110V AC, 50 or 60Hz

- Weight: approx. 125kg

Standard accessories:

- Small flat anvil: 1 pc.

- V-notch anvil: 1 pc.

- Diamond cone penetrator: 1 pc.

- 1/16" steel ball penetrator: 1 pc.

- Rockwell standardized block: 5 pcs.

- Superficial Rockwell standardized block: 4 pcs.

- Printer: 1 pc.
