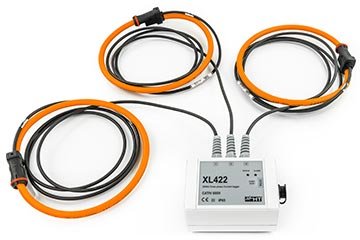

HT Instrument XL422 TRMS three phase current Data Logger (2~2500A,±(2.0%rdg + 2dgt))

VOLTAGE:

Range : 2 ÷ 2500A

Resolution: 1A

Accuracy: ±(2.0%rdg + 2dgt)

Sampling rate: 64 point in 20ms for each sampling period.

Sampling period: 1s, 6s, 30s, 1min, 5min

Memory capacity: 1Mbyte; Autonomy in days (depending on batteries autonomy): 5(1s) ; 34(6s) ; 170(30s) ; 364(1min); 1820(5min)

PC interface: RS-232

Operating Temperature / Humidity: -20°C to 60 °C ; 0 - 100%RH (RS-232 connector closed)

Storage Temperature / Humidity:-20°C to 60 °C ; 0 - 100%RH (RS-232 connector closed)

General information:

• Insulation: class 2 (double insulation).

• Altitude max: 2000m

• Protection degree: IP65 (RS-232 connector closed)

Power supply:

• 2x1.5V alkaline battery type LR6-AA-AM3-MN1500

• Battery autonomy: >6months

Dimension:

• 120 (L) x 80(La) x 43(H) mm

• Maximum diameter conductor: 174mm

Weight: about 500g (with internal batteries).

Reference Standards:

• LVD: EN 61010-1 CAT III 600V (to ground and between inputs)

• EN61326 (1997)+ A1 (1998) +A2 (2001)

Included Accessories:

BORSA2000 Bag for transporting

TOPVIEW2004 Windows software for PC + serial cable C2004

VELCRO

Batteries and user manual
