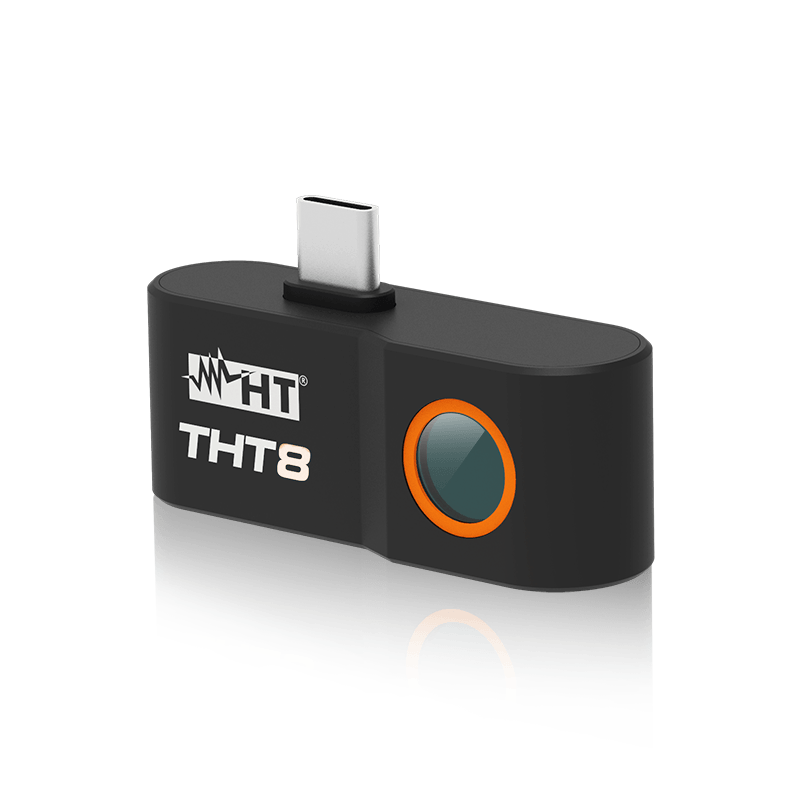

HT THT8 Pocket Infrared Thermal Camera (-20~400°C; 120x90pxl; 7.3mrad, Android))

IR Resolution: 120x90pxl

Temperature range: -20°~400°C

Image frequency: 25Hz

Thermal sensitivity/NETD: <0.05°C @ 30°C/50mK

Field of view (FOV): 50° x 38°

Focal length: f1.13

Lens: 2.3mm

IFOV: 7.3mrad

Focus mode: Automatic

Format of saved flies: PNG (snapshots), MP4 (IR videos)

Operating temperature: 0°C ÷ 35°C (optmal 16°C ÷ 22°C)

Operating humidity: 5%RH ÷ 95%RH

Storage temperature: -10°C ÷ 55°C

Storage humidity: 5%RH ÷ 95%RH

Encapsulation: IP54 according with IEC529

Dimensions (L x W x H): 50 x 30 x 20mm

Weight: 20g

Shock: 25G, according with IEC60068-2-29

Vibrations / Drop test: 2G, according with IEC60068-2-6 / 2m

Interface to mobile device: USB-C for connection to mobile devices through HTSmartCamera APP (only for Android devices)

Power supply: from connected mobile devices

Power consumption: <150mW
