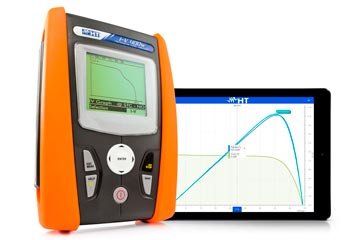

HT Instruments SOLAR-515w I-V curve tracer up to 15A or 1500VDC and PV efficiency logger

1. CERTIFIER OF SINGLE PHASE PV INSTALLATION

DC Voltage: 15.0 ÷ 1499.9; ± (0.5%rdg + 2dgt)

AC TRMS Voltage: 50.0 ÷ 265.0; ± (0.5%rdg + 2dgt)

DC current (by external transducer clamp):

-1100 ÷ -5/ 5 ÷ 1100; ± (0.5%rdg + 0.6mV)

AC TRMS Current (by external transducer clamp): 1 ÷ 1200; 47.5 ÷ 63.0; ± (0.5%rdg + 0.6mV)

1< FS ≤ 10: 0.05; 0.01

10< FS ≤ 100: 0.5; 0.1

100< FS ≤ 1000: 5A; 1

DC Power (Vmeas > 150V):

1< FS ≤ 10: 0.000k ÷ 9.999k;, 10.00k ÷ 99.99k ±(0.7%rdg + 3dgt)(Imeas < 10%FS)

10< FS ≤ 100:0.000k ÷ 9.999k; 10.00k ÷ 99.99k; ±(0.7%rdg + 3dgt)(Imeas < 10%FS); 100.0k ÷ 999.9k ; ±(0.7%rdg)(Imeas ≥ 10%FS)

100< FS ≤ 1000:0.00k ÷ 99.99k; 100.0k ÷ 999.9k; 1000k ÷ 9999k ; ±(0.7%rdg + 3dgt)(Imeas < 10%FS); ±(0.7%rdg)(Imeas ≥ 10%FS)

AC Single phase power (@ PF = 1, Vmeas > 200V):

1< FS ≤ 10: 0.000k ÷ 9.999k;, 10.00k ÷ 99.99k ±(0.7%rdg + 3dgt)(Imeas < 10%FS)

10< FS ≤ 100:0.000k ÷ 9.999k; 10.00k ÷ 99.99k; ±(0.7%rdg + 3dgt)(Imeas < 10%FS); 100.0k ÷ 999.9k ; ±(0.7%rdg)(Imeas ≥ 10%FS)

100< FS ≤ 1000:0.00k ÷ 99.99k; 100.0k ÷ 999.9k; 1000k ÷ 9999k ; ±(0.7%rdg + 3dgt)(Imeas < 10%FS); ±(0.7%rdg)(Imeas ≥ 10%FS)

Frequency: 47.5 ÷ 63.0Hz; ±(0.2%rdg+1dgt)

Irradiance (by reference cell) : 1 ÷ 65.0; ±(1.0%rdg + 5dgt)

Temperature (by external probe PT1000): -20.0 ÷ 100.0; ± (1.0%rdg +1°C)

2. I-V CURVE and IVCK MEASUREMENTS

I-V, IVCK: VDC Voltage @ OPC: 15.0 ÷1499.9; ± (0.5%rdg + 2dgt)

I-V, IVCK: IDC Current @ OPC: 0.10 ÷ 15.00; ± (1.0%rdg + 2dgt)

I-V: DC Power @ OPC (Vmpp >30V, Impp >2A): 50 ÷ 99999; ± (1.0%rdg + 6dgt)

I-V, IVCK: VDC Voltage (@ STC): 5.0 ÷ 999.9; ± (4.0%rdg + 2dgt)

I-V: IDC Current (@ STC): 0.10 ÷ 99.00; ± (4.0%rdg + 2dgt)

I-V: DC Power @ STC (Vmpp >30V, Impp >2A): 50 ÷ 99999; ± (5.0%rdg + 1dgt)

Irradiance (with reference cell): 1.0 ÷ 100.0; ÷(1.0%rdg+5dgt)

Temperature of module (with auxiliary PT1000 probe): -20.0 ÷ 100.0; ÷(1.0%rdg+1°C)

Accessories provided:

User manual on CD-ROM and quick guide

ISO9000 calibration certificate

SP-5100

Standard Clamp HT4004

Standard Clamp HT4005K

Reference Cell HT304N

M304

Remote Unit SOLAR02

Probe PT300N

Case VA500

Set of Adapter KITPCMC4

Set of Adapter KITPCMC3
