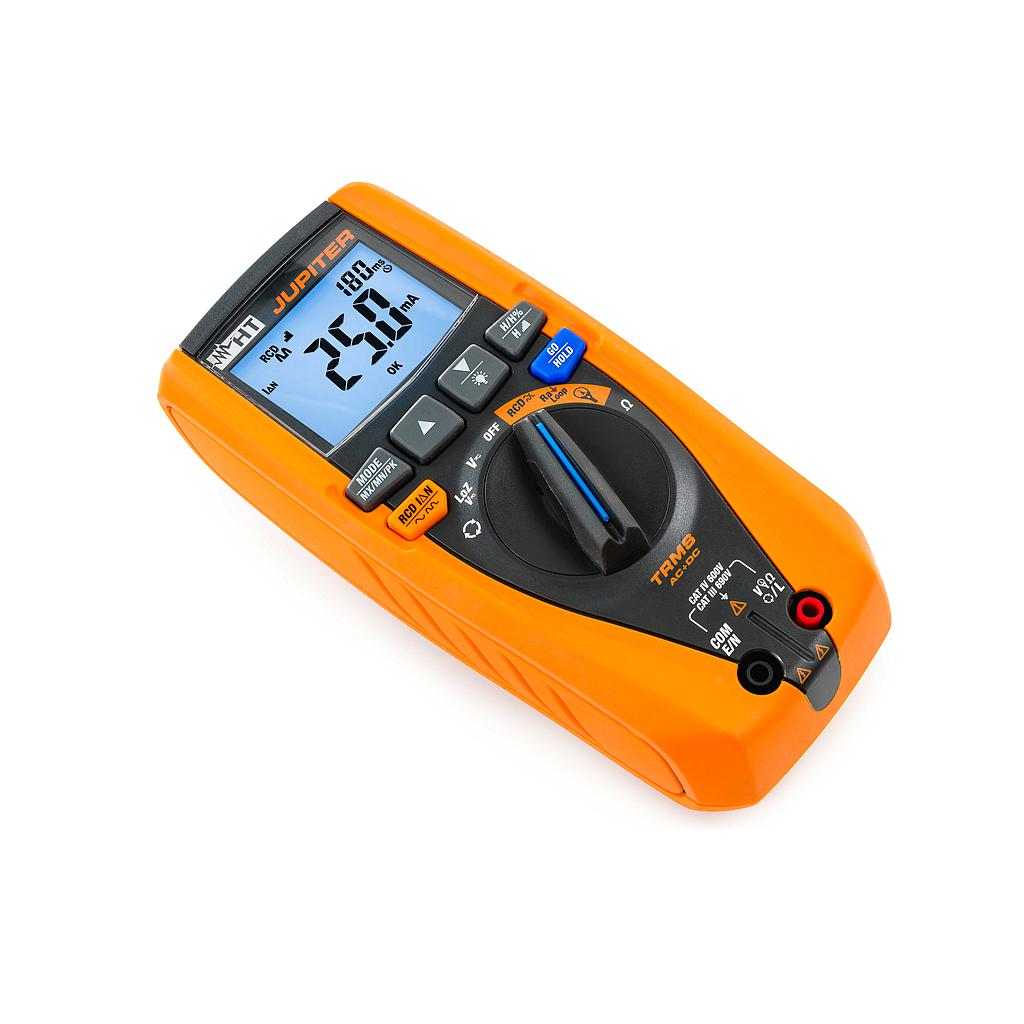

HT JUPITER Digital Multimeter

- DC Voltage: 0.0V ~ 690.0V; ±(0.5%reading + 2digits)

- AC TRMS, DC, AC+DC TRMS, LoZ Voltage: 0.5V ~ 690.0V; 32Hz ~ 1kHz; ±(0.5%reading + 2digits)

- AC TRMS Current with Flexible clamp F3000U: 1A ~ 3000A; ±(0.5%reading + 2digits)

- AC TRMS, DC, AC+DC TRMS Current with Standard clamp: 1mV ~ 1000mV; ±(0.5%reading + 2digits)

- Inrush current (DIRC) - Flexible clamp F3000U: 1A ~ 3000A; ±(2.0%reading + 2digits)

- Inrush current (DIRC) - Standard clamp: 1mV ÷ 1000mV; ±(2.0%reading + 2digits)

- Resistance and Continuity test: 0.0Ω ~ 1999Ω; ±(1.0%reading + 5digits)

- Voltage / Current Harmonics: 42.5Hz ~ 69Hz; ±(5.0%reading + 10digits)

- Phase rotation test with 1-wire method:100V ~ 690V ; 42.5Hz ~ 69Hz

- Test on RCD protection devices

+ RCD type: AC, A, General

+ L-PE voltage range: 100V ~ 690V

+ Frequency range: 42.5Hz ~ 69Hz

- Overall earth resistance without RCD tripping:

+ L-PE voltage range: 100V ÷ 690V

+ Frequency range: 42.5Hz ÷ 69Hz

+ Test current: <15mA

+ Measurement range: 1Ω ÷ 1999Ω

+ Resolution: 1Ω

+ Accuracy: 5.0%reading + 3Ω

- L-N, L-L, L-PE Loop / Line Impedance

+L-PE, L-N voltage range: 100V ÷ 690V

+Frequency range: 42.5Hz ÷ 69Hz

+Test current: 100mA

+Measurement range: 0.1Ω ÷ 199.9Ω

+Basic accuracy: ±(5.0%reading + 3digits)

Standard accessories

• C2065 Three wire cable Red, Black, Green with Shuko plug

• 4324-2 Pair of test tips Red/Black 2/4mm straight banana

• YABAT0001HT0 Alkaline battery 1.5V, type AAA, IEC LR03, 4 pcs

• YABRS0002HT0 Carrying bag

• YAMUM0066HT0 User manual on CD-ROM

• YAMUM0065HT0 Quick reference guide

• Calibration certificate ISO9000
