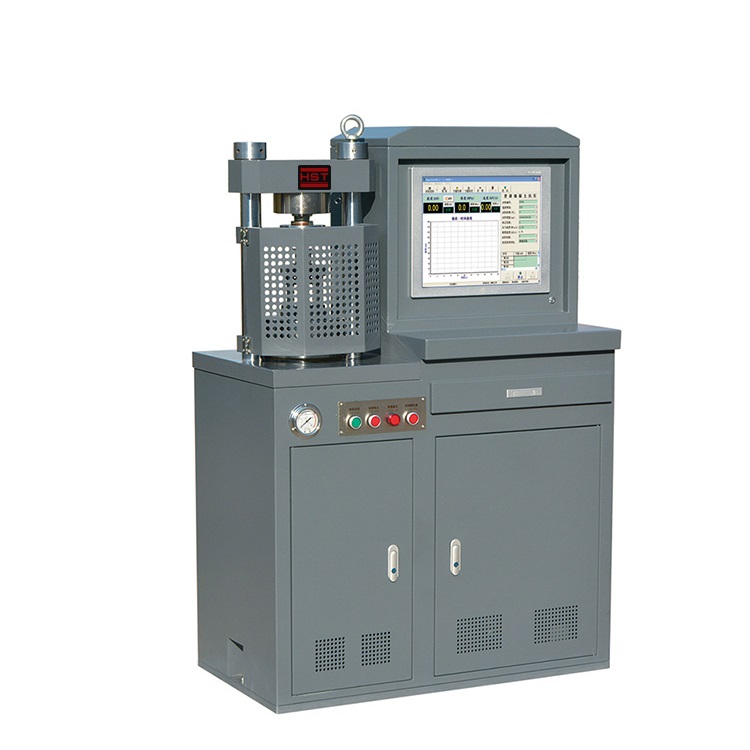

HST YAW-300C Computer Control Compression Testing Machine (300kN & 10kN)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max compression test force(kN): 300, 10
Type: Compression and Bending
Test Accuracy: ±1%
Test measurement range: 2%-100%FS
Control way: Computer control auto loading progress
Test space adjustment method: Block adjustment test space
Oil cylinder piston diameter and stroke: Φ125mm×80
Maximum Piston rising speed: 60mm/min
Free fall svelocity of the piston: 35mm/min
Maximum oil pressure: 25Mpa
Max compression space: 180mm
Upper and lower compression plates size: Φ108mm /Φ60mm
