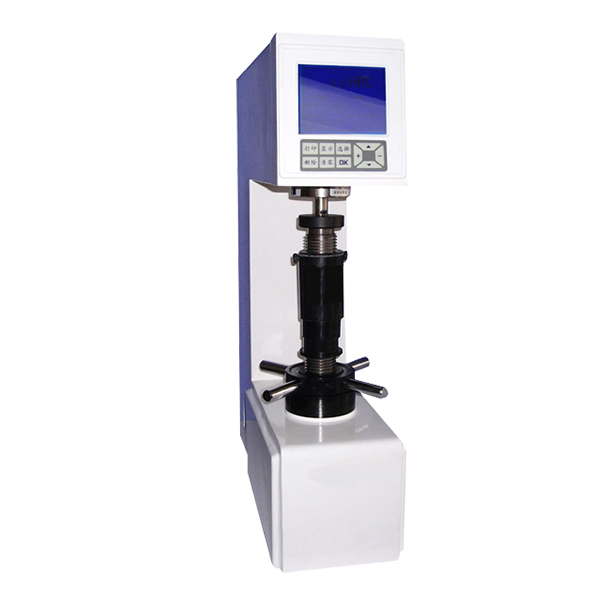

HST XHRS-150 Digital Plastics Rockwell Hardness Tester (1471N)

1. The Initial Test Force: 98.07N; Tolerance: ± 2.0%

2. The Total Test Force: 588.4N, 980.7N, 1471N; Tolerance: 2.0%

3. The Indenter Specifications:

3.1 The φ3.175mm ball indenter

3.2 The φ6.35mm ball indenter

3.3 The φ12.7mm ball indenter

4. The Power Source: AC220V±5%, 50-60 HZ

5. Time-delayed control: 2-60 seconds, adjustable

6. The Max. Height of the Specimen Tested: 175 mm

7. The Distance from the Ball Indenter Center to the Instrument Body: 165mm.

8. The Overall Dimension (Length×Width ×Height): 520×215×700 (mm)

9. The Net Weight of the Tester: 78Kg (Approx)
