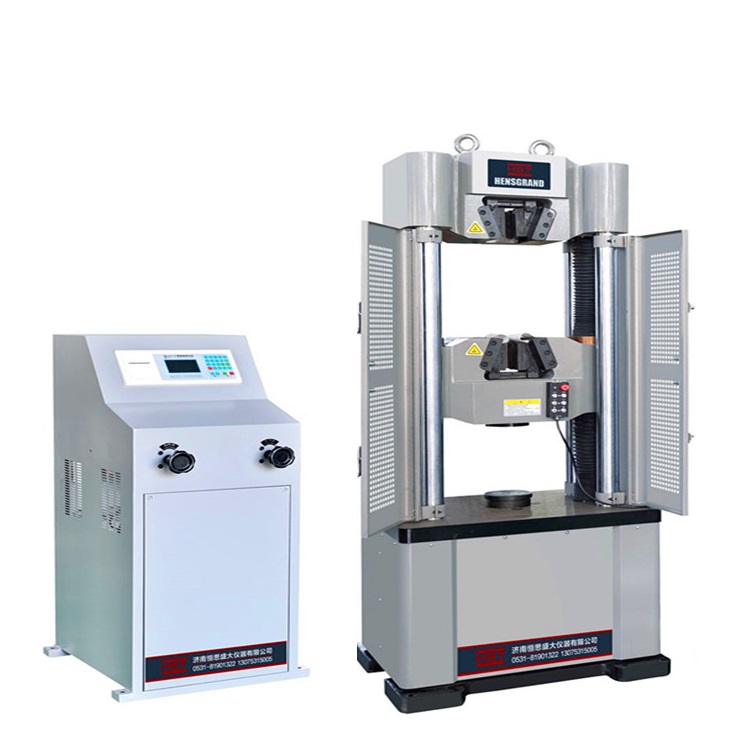

HST WE-100D Digital Display Hydraulic Universal Testing Machine (100kN)

Max.load (kN): 100kN

Load accuracy: ≤±1%

Load range: 2%-100%FS

Load resolution: 1/300000

Deformation Measurement Range: 2%～100%FS

Deformation accuracy: ≤±1%

Displacement resolution (mm): 0.01

Displacement error: ≤±0.5%

Max.piston stroke(mm): 250

Max piston moving speed: 0-90mm/min stepless speed adjusting

Crosshead lifting speed: 200mm/min

Max. tension test space: 780mm (can customize)

Max.Compression Test Space: 550mm (can customize)

Clamping method: Hydraulic clamp

Round specimen clamping range (mm): Φ10-Φ20,Φ20-Φ32, (Φ4-Φ10 Optional )

Flat specimen clamping range (mm): 0-15 (15-30 Optional)

Flat specimen clamping width(mm): 80

Compression plate size (mm): φ160

Bending roller distance(mm): 450

Width of bending rollers (mm): 120

Power supply: 3-phase,AC380V, 50Hz (can be customized)
