Max. Load(kN): 5000
Load accuracy: Class 1
Load range: 2%～100%F·S
Load resolution: Capacity/300, 000 (fully auto scaling of single measurement
Deformation Measurement Range: 2%~100%FS
Stroke: 300mm
Test speed(mm/min): 0-80
Max. Tension Test Space (mm): 1000
Nominal maximum specimen sizes Diamater(mm): Φ20~Φ50,Φ50~Φ80, Φ80~Φ110
Nominal maximum specimen sizes Thickness(mm): 5~50, 50~100
Column Effective Spacing(mm): 800
Datasheet
1.Introduction Application

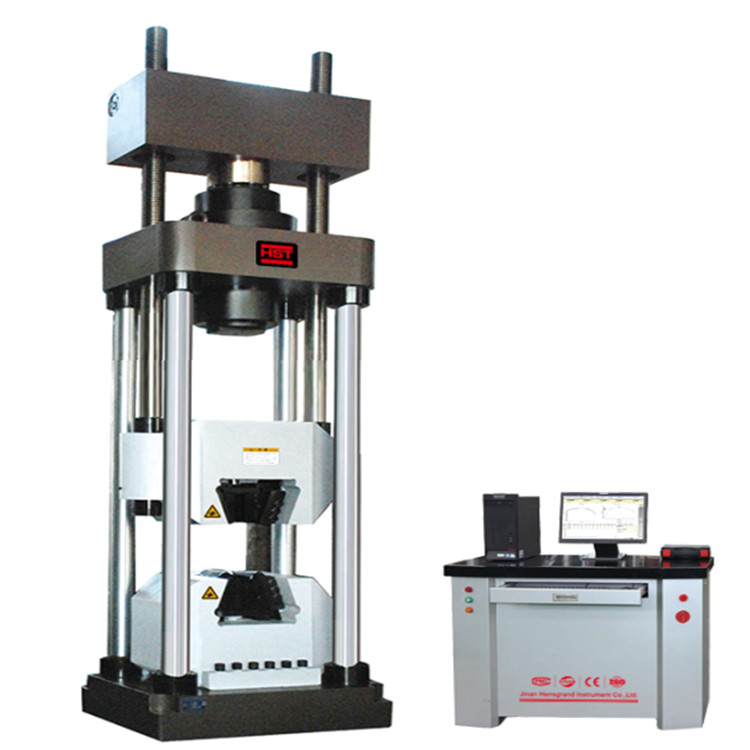

WAW-3000A/4000A/5000A Hydraulic Universal Testing Machine is ideal for high-capacity tension, compression, bend/flex, and shear testing.
It accords with the correspondent requirements of BS, EN, ISO, ASTM,JIS and many other testing methods.
These frames feature dual spaces so users can quickly change between tension and compression testing without having to remove heavy fixtures.
2.Application
Metals-(wire, rod, tube,strip, plate, strip)
Fasteners (tensile, proof,single and double shear)
Construction materials(reinforcement bar, wire,mesh, folding,compression of concrete and components)
Nonmetal materials , and more
