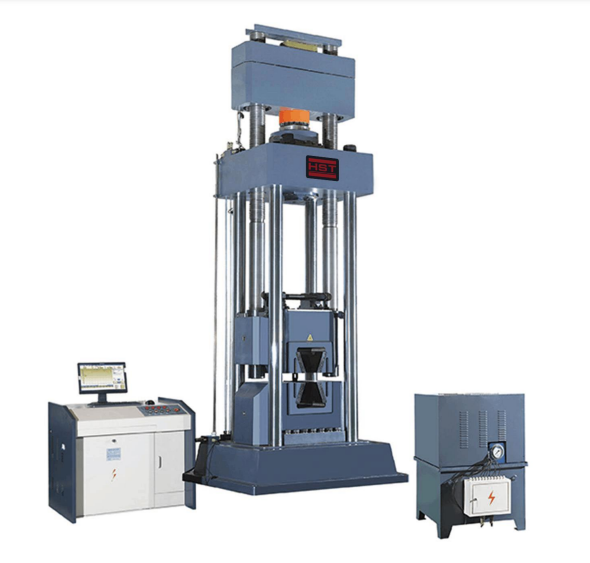

HST WAW-3000D Hydraulic Universal Testing Machine (50-3000kN)

Max. Load(kN): 3000

Load accuracy: Class 1

Load range: 50-3000kN

Load resolution : Capacity/300, 000 (fully auto scaling of single

Stroke: 300mm

Test speed(mm/min): 0-80

Adjustable crosshead speed(mm/min): 50

Clearance between grips(mm) : 1000 (excluding ram stroke)

Clearance between platens(mm): 800

Nominal maximum specimen sizes: Diamater(mm) Φ20~Φ50, Φ50~Φ80, Φ80~Φ110

Nominal maximum specimen sizes: Thickness(mm) 0~50, 50~100

Nominal maximum specimen sizes : Width(mm) 110

Platen dimensions(mm): 280

Speed accuracy: within ±1% / ±0.5% of set speed

Adjustable crosshead speed(mm/min): 260

Load frame(mm): 1,460*970*5,000

Weight(kg): 25500
