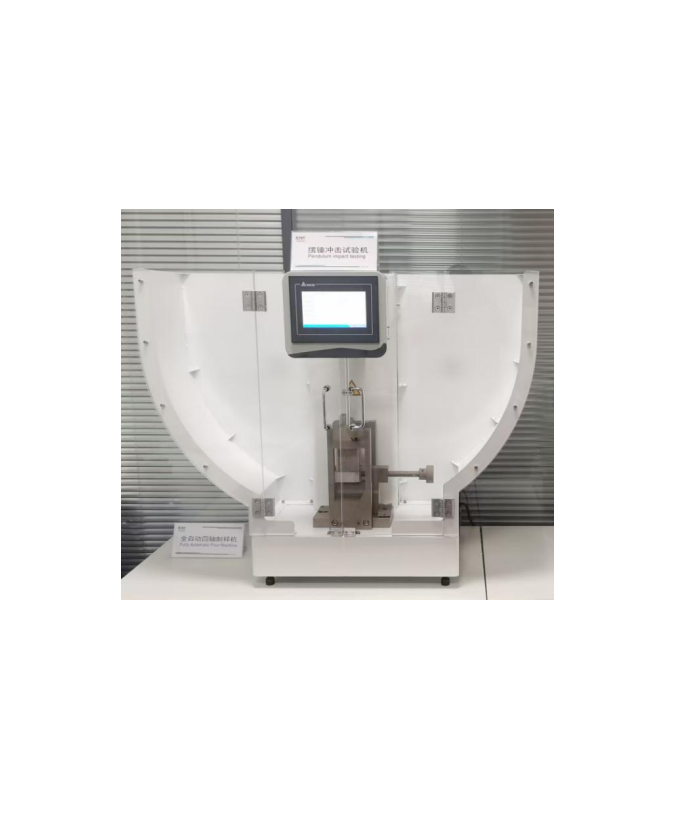

HST HST-XJXD-15MF Touch Screen Charpy and Izod Impact Testing Machine (15J, 3.8 m/s)

Energy(J)

Charpy(ASTM D6110): Five impact energies: 2J, 4J, 5J, 7.5J, 15J, two hammers;

Impact speed(m/s):

Charpy: 2.9,3.8

Maximum friction loss energy: <0.5%

Energy display accuracy: 0.001J (better than 0.05% accuracy)

Pendulum prelift Angle: 150±0.2°

Angle measurement accuracy: 0.001°

Striking center distance

Charpy: 230/395

Izod: 335

American standard ASTM D6110 Charpy test support: 101.6mm

American standard ASTM D6110 notch centering sample: 101.6mm

Charpy specimen type and size (length × width × thickness): 127 mm × 3-12.7 mm × 12.7mm (notch remaining 10.16mm)

American standard ASTM D6110 Charpy impact blade angle and curvature radius: (45±2) degrees (3.17±0.12) mm

Energy unit: J,kJ/㎡,J/m are interchangeable

Power supply: 220VAC-15% ~ 220VAC+10%, 50Hz (single-phase three-wire system)
