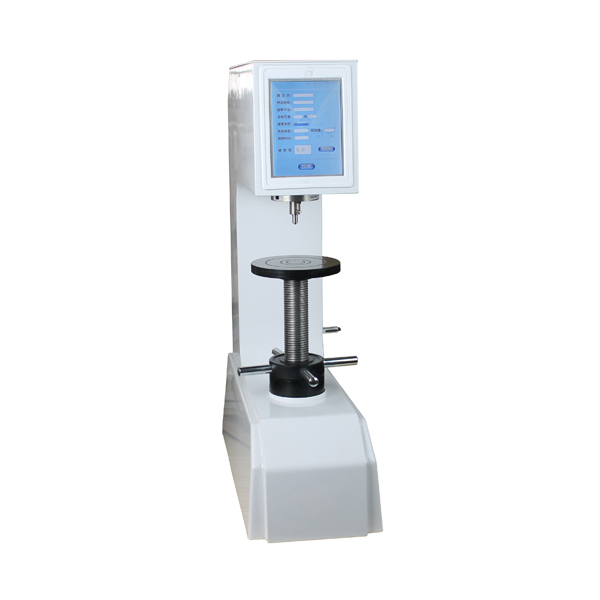

HST HRSS-150/45T Rockwell Hardness Tester With Touch Screen (150kgf)

Application:

Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.

Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness.

Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.

Dwell time: 0-99s

Initial load of Rockwell: 10kgf (98N)

Total load of Rockwell: 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N)

Initial load of Superficial Rockwell: 3kgf (29.4N)

Total load of Superficial Rockwell: 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N)

Load value error: ＜0.5%

Hardness testing range: HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125

Testing rage of Superficial Rockwell:

HR15N：70-94 HR30N：42-86 HR45N：20-77

HR15T：67-93 HR30T：29-82 HR45T：1-72

Max Height of Sample: 220mm

Distance of Indenter to outer wall: 200mm

Hardness reading: LCD display

Data output: USB flash disk

Power supply: AC220V，50/60HZ

Size: 560×220×750mm

Net weight: About 70kg
