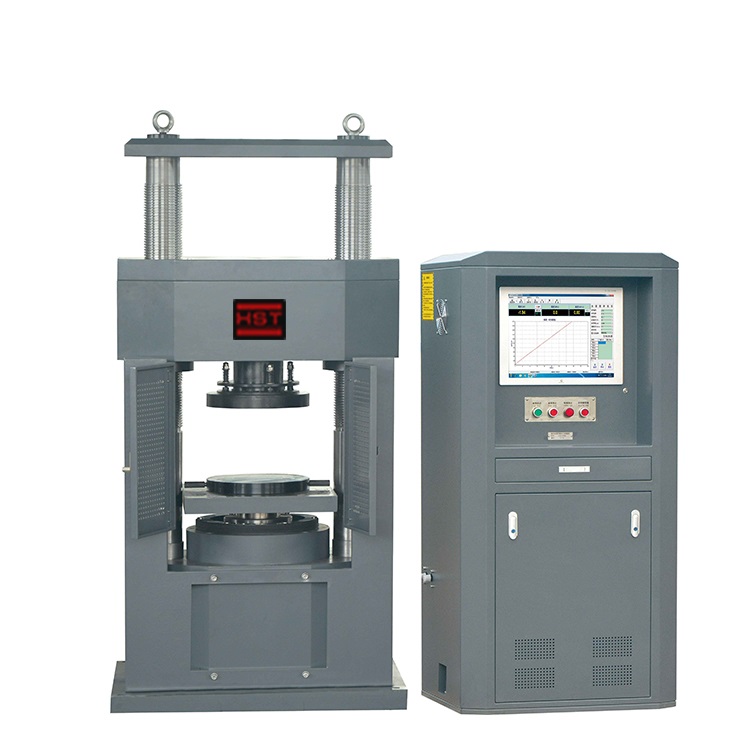

HST HCTM-2000W Frame-type Computer Automatic Compression Testing Machine (2000kN, AC380V/220V)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max. Load: 2000kN
Test class: 1 class
Load measuring range: 2-100% of F.S
Load accuracy: ±1.0%
The roughness value for texture of loading and auxiliary platens: ≤ 3.2μm
Distance between columns (mm): 380
Upper compression platen (mm): 300*300
Lower compression platen (mm): 300*300
Piston stroke(mm): 150
Distance between upper and lower plate: 320mm
Power supply: AC380V/220V
Overall dimension (mm): 1000x420x1550
Weight (kg): 1200
