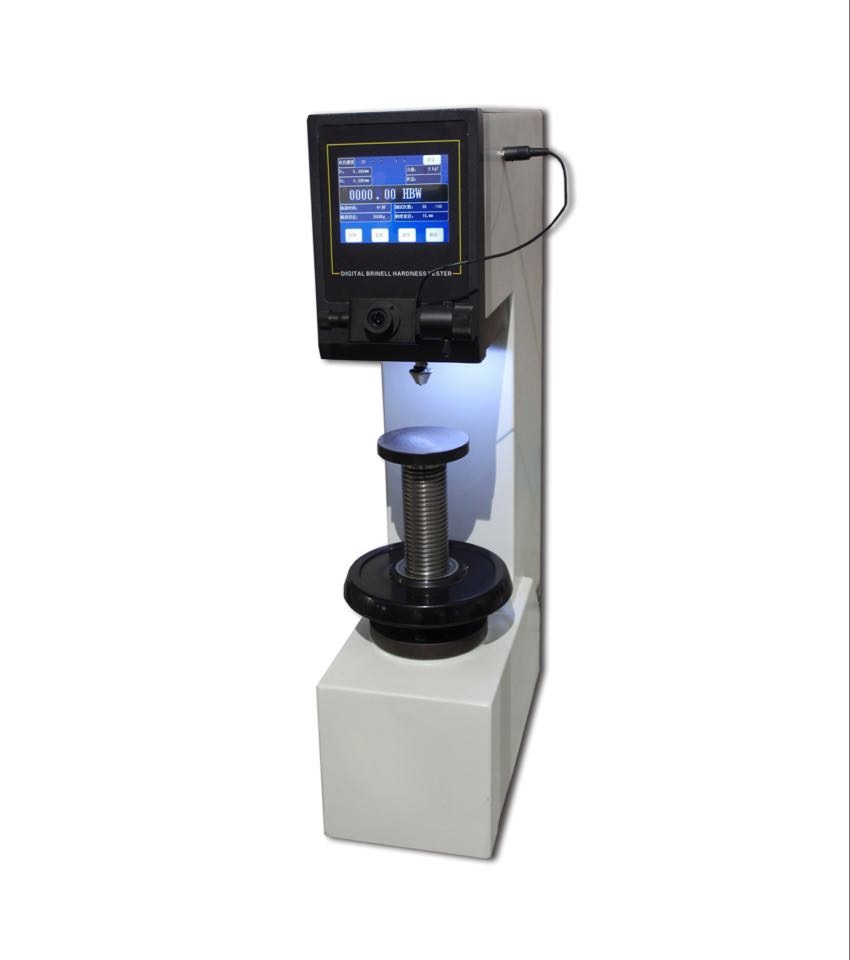

HST HBS-3000F DIGITAL DISPLAY BRINELL HARDNESS TESTER (8-450HBS/650HBW-3000kgf)

Application: Determination of ferrous, non-ferrous metals and brinell hardness of bearing alloy materials, application range is wide, suitable for precision measurement of the parallel plane. The surface is stable and reliable measurement.

Test range：8-450HBS，8-650HBW

Test force：1.839、2.452、7.355、9.807、29.42KN（187.5、250、750、1000、3000kgf）

Max height of test piece:230mm

Depth of throat: 120mm

Power supply: 220V

Dimensions: 700*268*842mm

Weight: 210KG

Standard accessories:

1. Large flat anvil,small flat anvil,V-notch anvil: 1pcs,each;

2. Tungsten carbide ball penetrator: Φ2.5,Φ5,Φ10,1pc.each

3. Brinell standardized block: 2pces.

4. Optional printer

Datasheet
