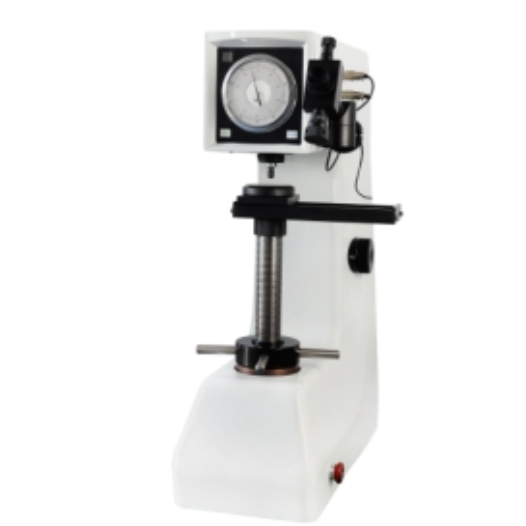

HST HBRV-187.5D Universal Hardness Tester

Hardness read: Dial shows

Control: Weight load

Total Test Force:

Rockwell: 588, 980, 1471N (60, 100, 150Kgf)

Brinell: 153.2, 306.5, 612.9, 1226, 1839N, 2415.8N (15.625, 31.25, 62.5, 125, 187.5 , 250Kgf)

Vickers: 49.03, 98.07, 196.1, 294.2, 490.3, 980.7N (5, 10, 20, 30, 50, 100Kgf)

Scale:

Rockwell: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Brinell: HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5, HBW5/125, HBW2.5/187.5, HBW5/250

Vickers: HV5, HV10, HV20, HV30, HV50, HV100

Hardness Test Range:

Rockwell: 20-90HRA, 20-100HRB, 20-70HRA

Brinell: 5-650HBW

Vickers: 5-3000HV

Head-wall Distance:

Rockwell: 200mm

Brinell, Vickers: 160mm

Lens Magnification: 100X, 50X, 25X

Power Supply: AC220V/50Hz
