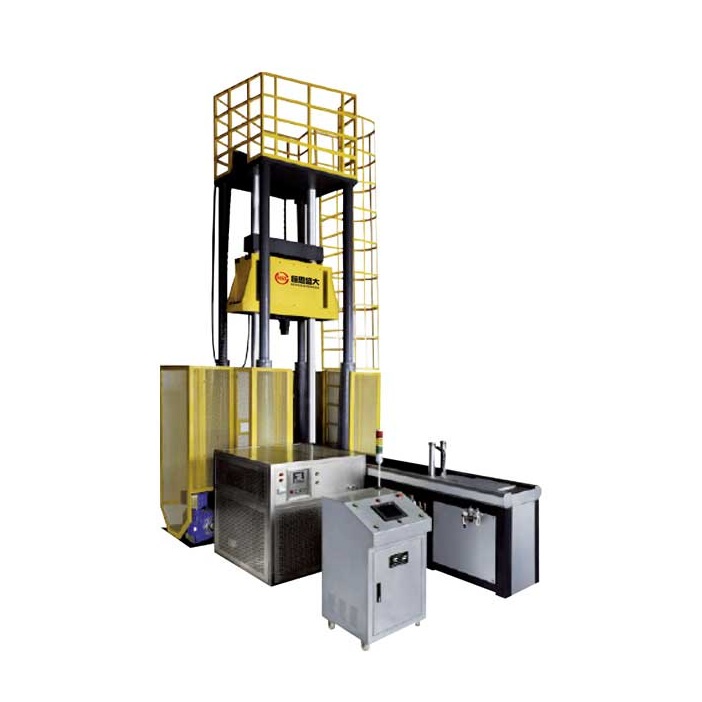

HST DWTT-80000 Drop Hammer Impact Test Machine (80000J, 2400 kg Up-weight)

Maximum Energy(J): 80000

Minimum Energy(J): 24000

Tup Mass(kg): 1600

Tup Mass Accuracy: ±1%

Total Weight Of Up(kg): 2400

Velocity Of Drop(m/s): 5～8

Hammer Lifting Speed(m/min): 3

Height Resolution: 0.1

Height Accuracy(mm): ≤±10

Hardness Of Tup Nose: HRC58-62

Radius Of Tup Nose(mm): R25.4±2.5

Sample Centered Error(mm): ±1

Support Anvil Span(mm): 254±1.5

Specimen Dimension(mm): (305±0.5)×(76.2±1.5)×(3-40)

Power Supply: 380v±10%,50/60Hz
