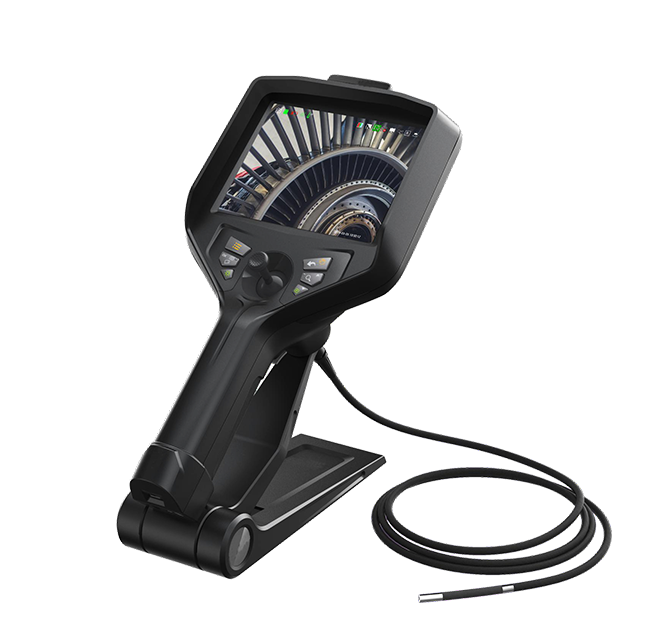

Hoyamo VH-510 Videoscope

Tube system:

Probe diameter: 2.2mm; 2.8mm; 3.8mm; 6mm

Camera pixels: 400x400; 640x480; 1280x720

DOF: 3mm-50mm/5mm-80mm; 10-100mm/5

FOV: 90°/120°

Viewing direction: 0° front view/ 90° sideview/ front view & sideview dual lens

Light source: front ceramic light/ rear-mounted optic fiber cold

Illuminance: max: 100000+Lx & 0-9 levels adjustable light

Tube length: 1.0mm (customized size)

Bending angle: max 190°

Display monitor system:

Display: 5.1” color IPS display, all sight viewing angle, sunshade design

Display resolution: 640x480; 1280x960

Zoom in/out: 8X

Image effect: negative film/black&white/standard

IP level: probe/tube: IP67

Image/video format: JPEG/MOV

Data port: HDMI video output, micro USB port with water & dust proof device

Working time: >/=8h

Battery capacity: 3.7V, 3200mAhx2

Power charge: DC5V, 1A

Weight: ≤0.8kg

Accessories: standard configuration

Instrument case; videoscope; battery (2); card reader; 32G TF card; charger; USB cable; user manual
